Metallyte™ ICEM - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

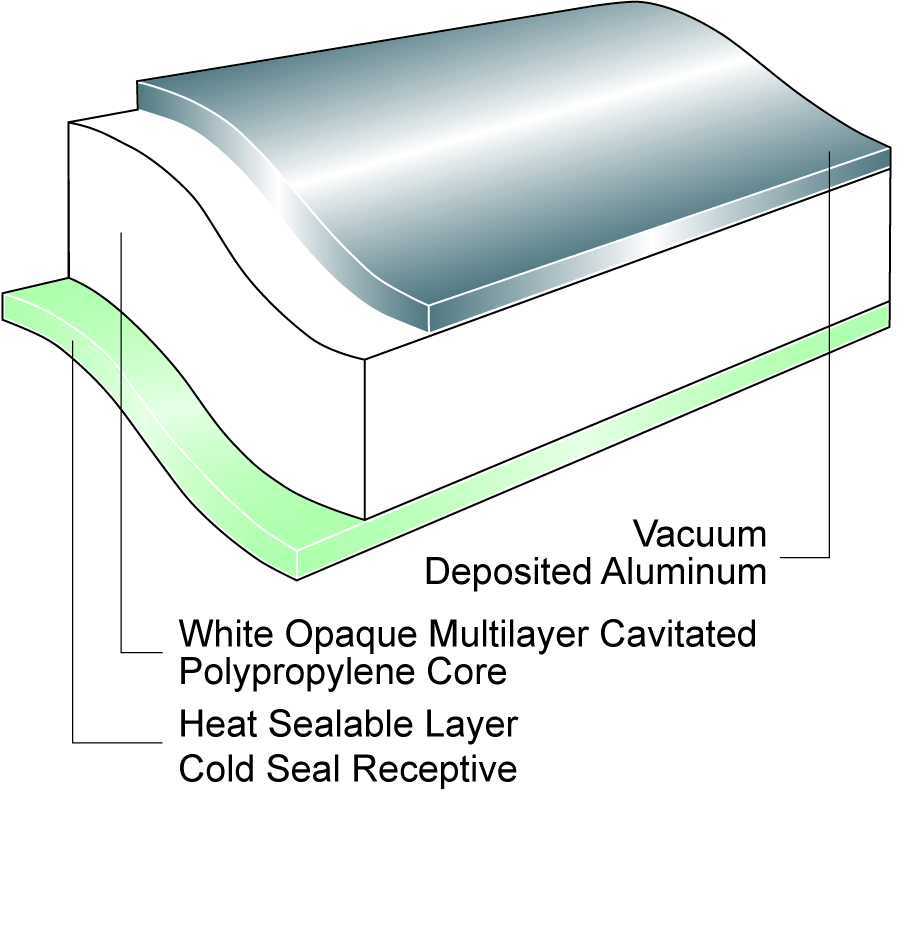

Metallyte™ ICEM is a white opaque, cavitated, biaxially oriented polypropylene film, metallized on one side. The low density of 0.62 offers a yield benefit. ICEM is designed for ice cream applications, and is suitable for heat seal and cold seal on HFFS packaging machines.

Key Features

  • High yield
  • Outstanding opacity and light barrier
  • Brilliant metal appearance on one side, bright white background on the other side
  • Well adapted to cold seal process
  • High COF inside to optimize efficiency
  • Metal surface must be varnished to be protected


Properties & Typical Values

PropertiesUnit38ICEMTest Method
Yieldm²/kg42.4ITM 01
Unit Weightg/m²23.6ITM 01
Film Thicknessµm38ITM 02
Gloss (45°)Gloss Units75ITM 14
Optical Density2.1ITM 11
Tensile Strength at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		Mpa100|155ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-6.0ITM 37
Elongation at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		%140|50ITM 50
Elastic Modulus - MD|TDMpa1300|2100ITM 50
Minimum Sealing Temperature
(Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat
Unmetallized side		°C105ITM 26
Heat Seal Range (RDM)
Unmetallized side – RDM 25N/cm2 – 0.5 sec – Flat/Flat		°C45ITM 26
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr0.5ITM 46
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Frozen Food
  • Ice Cream

Applications

  • HFFS Flexible Packaging

Processing Method

  • Cold Seal Adhesive
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • In-line treatment and priming are recommended for printing on the metalized surface.
  • In-line treatment of the metalized surface is suggested for  laminating.
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines.

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

Please contact your Sales Representative for complete country availability.

Revision date : June 06, 2024
