Label-Lyte™ LL345 - Oriented Polypropylene Film
Product Description

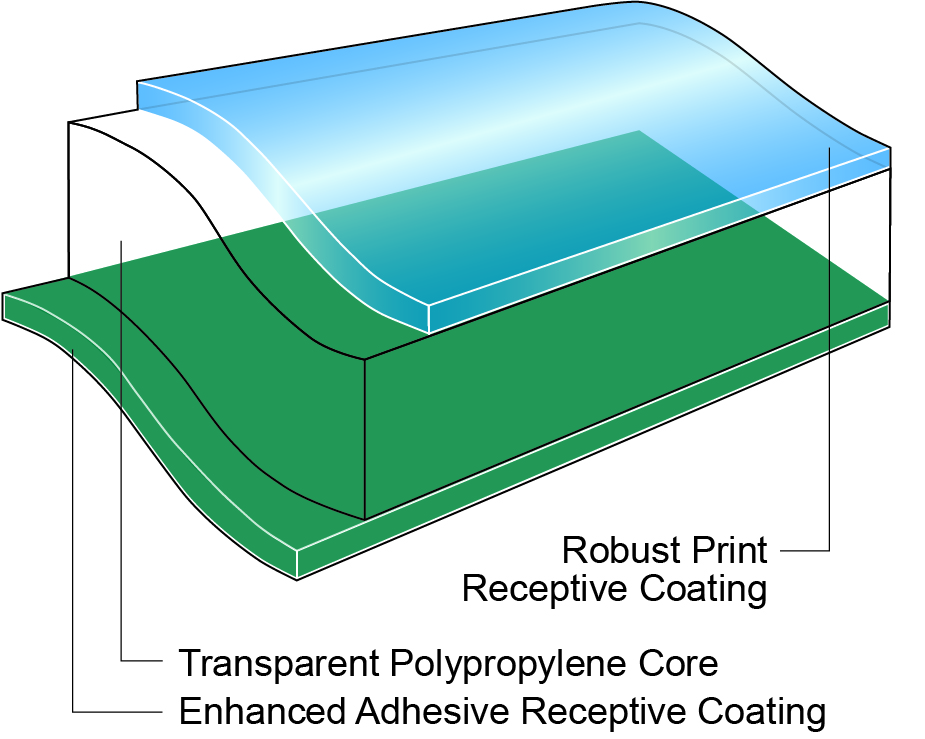

Label-Lyte™ LL345 is a clear, two-side coated, BOPP label facestock designed for demanding pressure sensitive applications where outstanding ink adhesion and adhesive anchorage are required. This premium film provides a no label look and is commonly used in beverage and health-and-beauty applications. The coated print surface is compatible with UV, flexo, letterpress, screen and offset systems. Additionally, it is compatible with solvent and water based flexo and solvent based gravure. LL345 is also compatible with hot stamping and cold foil stamping systems. The adhesive side is coated to provide improved anchorage of pressure sensitive adhesives.
Key Features
- Excellent gloss and transparency
- Excellent compatibility with a broad range of ink systems, including UV flexo
- Good compatibility with Xeikon dry toner print system
- Excellent adhesive anchorage
- Excellent in-to-out blocking resistance
- Excellent stiffness for automatic label dispensing
Properties & Typical Values
| Properties | Unit | 50LL345 | 60LL345 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 21.5 | 18.9 | ITM 01 |
| Unit Weight | g/m² | 46.5 | 52.9 | ITM 01 |
| Film Thickness | µm | 50 | 60 | ITM 02 |
| Gloss (45°) - Print Surface | 83 | 83 | ITM 14 | |
| Haze | % | 2.5 | 2.7 | ITM 06 |
| Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | MPa | 120|250 | 120|250 | ITM 50 |
| Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -4.0|-2.0 | -4.0|-2.0 | ITM 37 |
| Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 175|65 | 175|65 | ITM 50 |
| Elastic Modulus - MD|TD | MPa | 2000|3500 | 2000|3500 | ITM 50 |
Market Segments
- Frozen Food
- Health and Beauty Care
- Household and Detergents
- Pet Food
- Industrial
- Beverage, Alcoholic
- Beverage, Carbonated
- Beverage, Mineral Waters
Applications
- Pressure Sensitive Labels
Processing Method
- Inner Web Adhesive Lamination
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
- Surface Print Unsupported
- Water-based Flexographic Printing
- UV Offset Lithography Printing
- UV Flexographic Printing
- UV Letterpress Printing
- UV Screen Printing
- Cold Foil Stamping
- Hot Stamping
- UV Inkjet
- Dry Toner Print System
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
