Ethy-Lyte™ HD800 - Oriented Polyethylene Film
Product Description

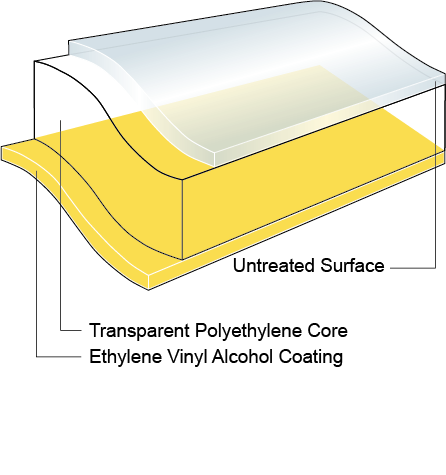

Ethy-lyteTM HD800 is high gas barrier, transparent bi-axially oriented, high density polyethylene (BOPE) film coated on one side with EVOH. It provides excellent gas and aroma protection and can be used for dry products and semi-moist products under refrigerated conditions*.
HD800 is designed as non-sealable, high performance printing outer web in duplex laminates.
Due to superior performance in the packaging processes, the HD800 family is suitable for a wide range of applications and setting new market standards in combination with other PE films for recyclability.
Key Features
- Exceptional gas and aroma barrier
- Best performance in printing and lamination
- Good mechanical stability
- High transparency
- Exclusively for use in lamination
- Improved barrier to Mineral Oils compared to non-barrier film (1)
Properties & Typical Values
| Properties | Unit | 25HD800 | Test Method |
|---|---|---|---|
| Yield | m²/kg | 42,7 | ITM 01 |
| Unit Weight | g/m² | 23,4 | ITM 01 |
| Film Thickness | µm | 25 | ITM 02 |
| Haze | % | 6 | ITM 06 |
| Elastic Modulus - MD|TD | Mpa | 1300|1900 | ITM 50 |
| Coefficient of Friction - Untreated/Untreated | 0,4 | ITM 20 | |
| Water Vapor Transmission Rate - 38°C, 90% RH | g/m²/24 hr | 5 | ITM 46 |
| Oxygen Transmission Rate - 23°C, 0% RH | cm³/m²/24 hr | 1 | ITM 42 |
Market Segments
- Fresh Produce
- Dairy Products
- Household and Detergents
- Crisps and Snacks
- Dry Foods and Beverage Powders
- Pet Food
- Dried Fruits and Nuts
Applications
- HFFS Flexible Packaging
- Pre-made Bags - Flexible Packaging
- VFFS Flexible Packaging
- Pouches - Flexible Packaging
Processing Method
- Cold Seal Adhesive
- Outer Web Adhesive Lamination
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
