Bicor™ MBX768 - Oriented Polypropylene Film
FLEXIBLE PACKAGING PRODUCT DATA SHEET
Product Description

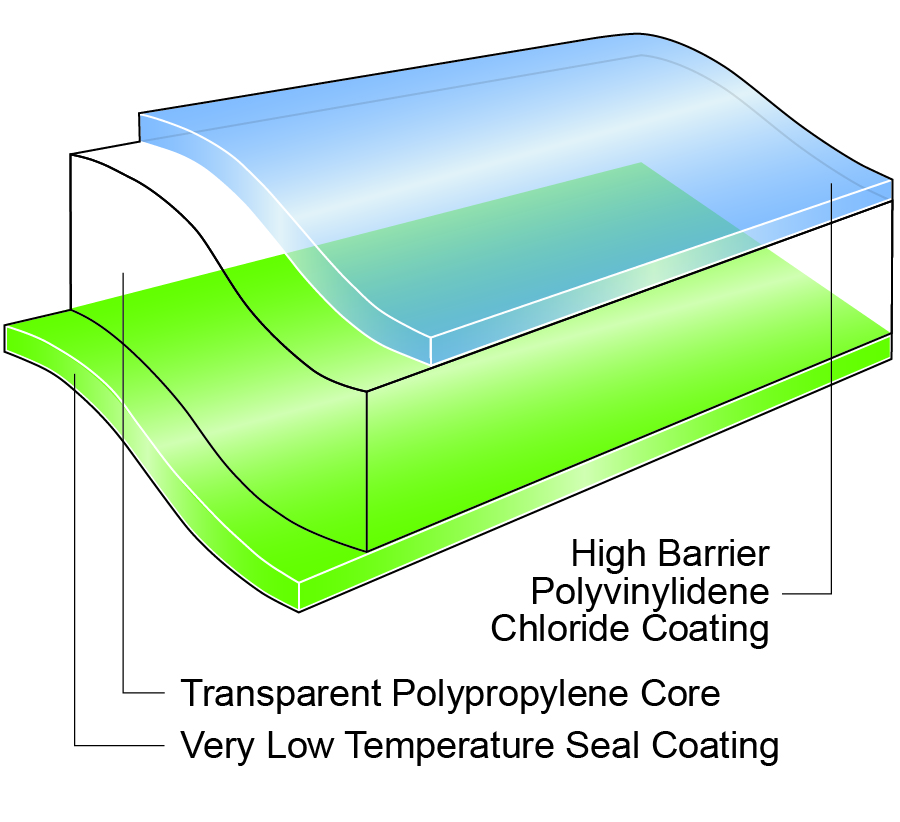

Bicor™ MBX768 is a high gas barrier, biaxially oriented transparent polypropylene film, coated on one side PVdC, one side very low temperature seal (VLTS) coating. PVdC provides an excellent moisture, gas and aroma protection for all types of products and VLTS coating provides excellent performance on high speed HFFS machines.
Key Features
- Excellent moisture, oxygen and aroma barriers
- Exceptionally wide sealing range with a low minimum seal temperature (MST)
- Excellent seal strength and hot tack
- Robust performance on horizontal flowpack machines
- Excellent seal retention in humid conditions
- Outstanding optical properties
- Water-based coatings
- Improved barrier to mineral oils compared to non-barrier film 1
Properties & Typical Values
| Properties | Unit | 26MBX768 | 32MBX768 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 41.7 | 34.0 | ITM 01 |
| Unit Weight | g/m² | 24.0 | 29.4 | ITM 01 |
| Film Thickness | µm | 26 | 32 | ITM 02 |
| Gloss (45°) | Gloss Units | 98 | 98 | ITM 14 |
| Haze | % | 1.6 | 1.7 | ITM 06 |
| Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | Mpa | 135|275 | 135|275 | ITM 50 |
| Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -5.0 | -5.0 | ITM 37 |
| Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 200|65 | 200|65 | ITM 50 |
| Elastic Modulus - MD|TD | Mpa | 2200|3500 | 2200|3500 | ITM 50 |
| Minimum Sealing Temperature (Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat VLTSC / VLTSC | °C | 75 | 75 | ITM 26 |
| Heat Seal Range (RDM) - VLTS/VLTS RDM - 25N/cm² - 0.5 sec - Flat/Flat | °C | 75 | 75 | ITM 26 |
| Coefficient of Friction | ||||
| VLTS/VLTS | 0.30 | 0.30 | ITM 20 | |
| PVdC/PVdC | 0.32 | 0.32 | ITM 20 | |
| Water Vapor Transmission Rate - 38°C, 90% RH | g/m²/24 hr | 3.0 | 3.0 | ITM 46 |
| Oxygen Transmission Rate - 23°C, 0% RH | cm³/m²/24 hr | 20 | 20 | ITM 42 |
Typical values should not be construed as finished product specifications (FPS).
Market Segments
- Biscuits/Cookie/Crackers
- Confectionery, Gum
- Confectionery, Sugar
- Bakery
- Confectionery, Chocolate
- Health and Beauty Care
Applications
- HFFS Flexible Packaging
Processing Method
- Inner Web Adhesive Lamination
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
- Surface Print Unsupported
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
