Label-Lyte™ LH532 - Oriented Polypropylene Film

LABEL PRODUCT DATA SHEET

Product Description

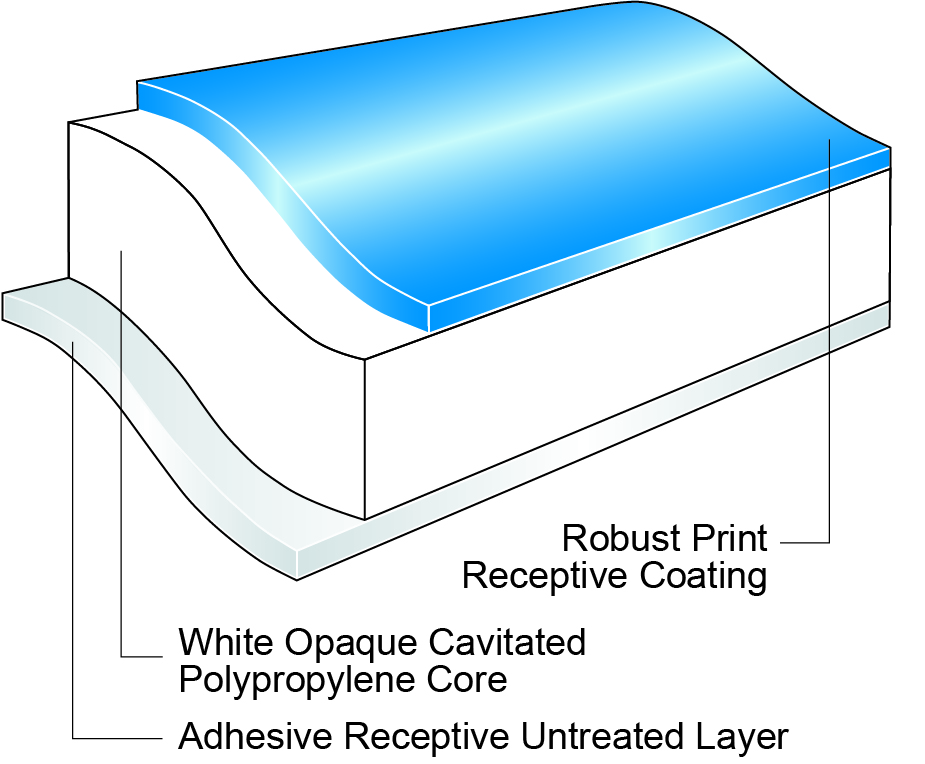

Label-Lyte™ LH532 is a 1 side top coated film designed for pressure sensitive label applications. The print top coated side provides an exceptional ink adhesion with a broad range of ink systems where excellent appearance and graphics are desired. LH532 is also compatible with hot stamping and cold foil stamping systems. Label-Lyte™ LH532 is a super white opaque polypropylene film face stock with a proprietary cavitated core providing optimum yield and excellent opacity. The untreated backside layer, when treated, is offering a good base for applying adhesives.

Key Features

  • Excellent whiteness and opacity
  • Excellent compatibility with a broad range of ink systems, including UV flexo
  • Excellent stiffness for automatic label dispensing
  • Good compatibility with Xeikon dry toner print system


Properties & Typical Values

PropertiesUnit58LH532Test Method
Yieldm²/kg24.2ITM 01
Unit Weightg/m²41.3ITM 01
Film Thicknessµm58ITM 02
Gloss (45°) - Print Surface63ITM 14
Light Transmission%22.0ITM 06
Tensile Strength at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		MPa95.0|185ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-4.0|-2.0ITM 37
Elongation at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		%170|55ITM 50
Elastic Modulus - MD|TDMPa1600|2600ITM 50
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Health and Beauty Care
  • Household and Detergents
  • Industrial
  • Beverage, Alcoholic
  • Beverage, Carbonated
  • Beverage, Mineral Waters

Applications

  • Pressure Sensitive Labels

Processing Method

  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing
  • Thermal Transfer printing
  • UV Offset Lithography Printing
  • UV Flexographic Printing
  • UV Letterpress Printing
  • UV Screen Printing
  • Cold Foil Stamping
  • Hot Stamping
  • UV Inkjet
  • Dry Toner Print System

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • One surface of this film is coated and provide outstanding converting performance. Treatment on the coated side is not recommended. However, refreshment of the untreated adhesive receptive layer is recommended.
  • Testing and consultation with the ink and pressure-sensitive adhesive suppliers are recommended to ensure compatibility.
  • The coated print-able surface may not be compatible with all release liners. Compatibility testing is strongly recommended.
  • This film is not intended for use in unprinted zigzag applications, in which the coated print surface is in contact with itself.
  • Label-Lyte™ film is printable by electro-photography but testing and consultation with the ink and printing heads suppliers are recommended to ensure compatibility.

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

Please contact your Sales Representative for complete country availability.

Revision date : May 06, 2025
