Bicor™ HNA - Oriented Polypropylene Film
FLEXIBLE PACKAGING PRODUCT DATA SHEET
Product Description

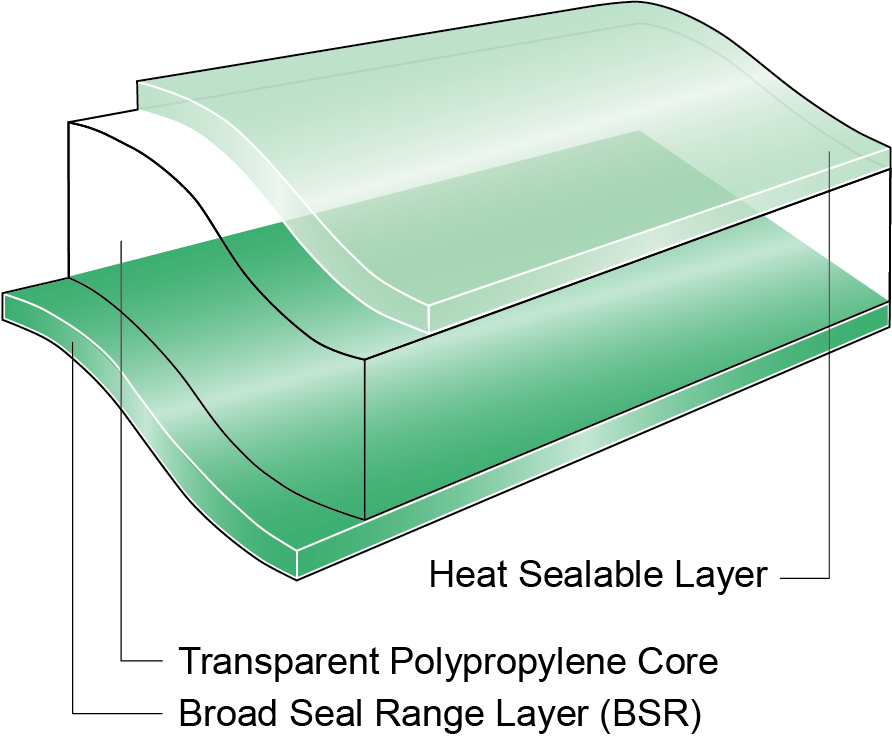

Bicor™ HNA is a transparent, one side low heat sealable, one side heat sealable untreated BOPP film, retaining good hot tack and seal integrity in high speed applications. It has a wide seal range in order to enable high speed HFFS packaging capability, whilst retaining good hot tack and seal integrity.
Key Features
- Transparent, low haze and excellent gloss
- Tailored and controlled hot slip properties, up to 60°C
- Low sealing threshold layer for high speed HFFS packaging machines
- Good moisture barrier
- Not suitable for boost treatment
Properties & Typical Values
| Properties | Unit | HNA25 | HNA30 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 43.9 | 36.6 | ITM 01 |
| Unit Weight | g/m² | 22.8 | 27.3 | ITM 01 |
| Film Thickness | µm | 25 | 30 | ITM 02 |
| Gloss (20°) | 100 | 100 | ITM 14 | |
| Haze | % | 2.5 | 2.5 | ITM 06 |
| Tensile Strength at Break - MD|TD | MPa | 130|280 | 130|280 | ITM 50 |
| Elongation at Break - MD|TD | % | 230|55 | 230|55 | ITM 50 |
| Heat Seal Range (RDM) Low heat-sealable side | °C | 60 | 60 | ITM 26 |
| Coefficient of Friction | 0.30 | 0.30 | ITM 20 | |
| Water Vapor Transmission Rate - 38°C, 90% RH | g/m²/24 hr | 5.5 | 4.6 | ITM 46 |
Typical values should not be construed as finished product specifications (FPS).
Market Segments
- Biscuits/Cookie/Crackers
- Confectionery, Gum
- Confectionery, Sugar
- Bakery
- Confectionery, Chocolate
- Health and Beauty Care
Applications
- Box Overwrap Flexible Packaging
- HFFS Flexible Packaging
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
© 2026 Jindal Films. Information is provided without warranty, express or implied, and is believed to be reliable but not guaranteed; Typical values are not final product specifications.
