Bicor™ MB100 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

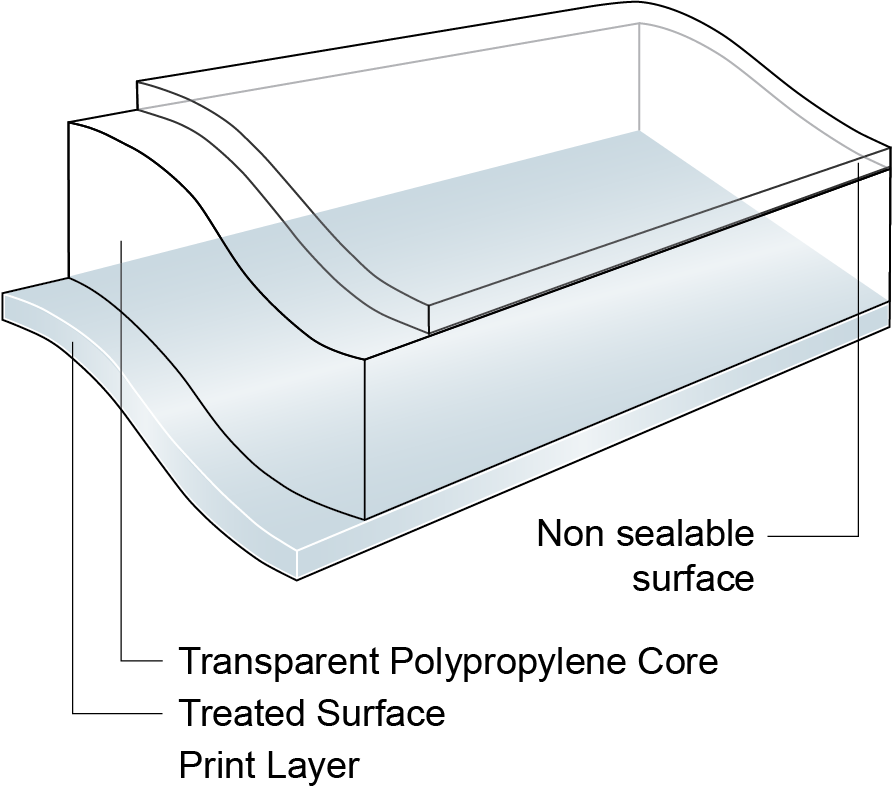

Bicor MB100 is a 1-side treated clear non-heat sealable OPP film with improved heat stability and high stiffness compared to standard OPP films. It is designed for reverse printing as a very thin outer web of a lamination to help replace thin PET films and achieve a PP mono-material structure for improved recyclability of flexibles.

Key Features

  • Very thin gauge to help reduce packaging weights
  • Improved heat stability compared to conventional OPP films
  • Good dimensional stability - low shrinkage
  • Exceptional Modulus - great stiffness
  • Good optics - high clarity and gloss
  • No jaw sticking - non heat sealable
  • Good ink adhesion on treated surface
  • Stable COF


Properties & Typical Values

PropertiesUnit12MB100Test Method
Yieldm²/kg91.7ITM 01
Unit Weightg/m²10.9ITM 01
Film Thicknessµm12ITM 02
Gloss (20°)Gloss Units120ITM 14
Gloss (45°)Gloss Units90ITM 14
Haze%1.5ITM 06
Dimensional Stability - MD|TD
130ºC; 5 minutes
%-2.5|-1ITM 37
Elastic Modulus - MD|TDMpa2700|5200ITM 50
Coefficient of Friction - Untreated Surface
dynamic; film/film
0.4ITM 20
Treatment - Treated Surfacedyne/cm40ITM 16
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Confectionery, Sugar
  • Bakery
  • Dairy Products
  • Frozen Food
  • Health and Beauty Care
  • Household and Detergents
  • Dry Foods and Beverage Powders
  • Pet Food
  • Dried Fruits and Nuts
  • Condiments
  • Cereal Bars

Applications

  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging
  • Pouches - Flexible Packaging
  • Lidding - Flexible Packaging
  • Stand Up Pouch - Flexible Packaging
  • Flat Sachet

Processing Method

  • Outer Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Outer Web Extrusion Lamination

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : April 30, 2025
