Label-Lyte™ LH346 - Oriented Polypropylene Film
Product Description

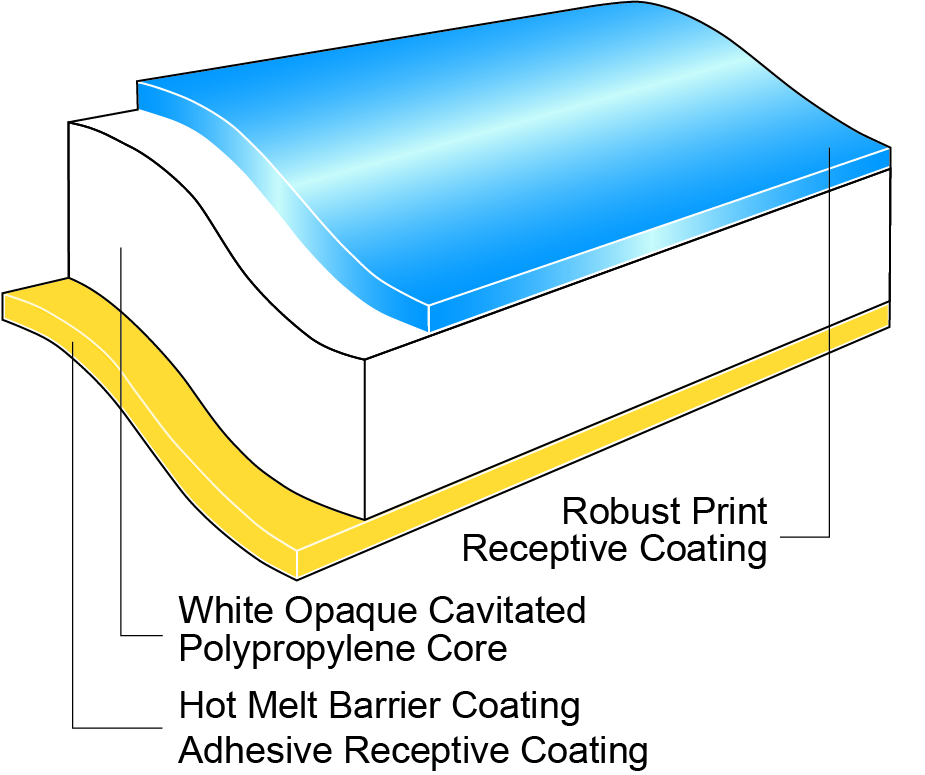

Label-Lyte™ LH346 is a super white opaque, two-side coated, high gloss, high yield polypropylene label facestock designed for demanding pressure sensitive applications where outstanding ink adhesion and adhesive anchorage are required. This premium film provides an outstanding resistance to curling and swelling when used with hot-melt adhesives. The adhesive-receptive side is coated to provide improved anchorage of pressure sensitive adhesives. The coated print-able surface is compatible with UV, flexo, letterpress, screen and offset systems. Additionally, it is compatible with solvent and water based flexo and solvent based gravure.
Key Features
- Excellent improved adhesive anchorage
- Technology avoiding swelling and curling
- Excellent whiteness and opacity
- Excellent compatibility with a broad range of ink systems, including UV flexo
- Good compatibility with Xeikon dry toner print system
- Excellent ´in-to-out´ blocking resistance
- Excellent stiffness for automatic label dispensing
Properties & Typical Values
| Properties | Unit | 40LH346 | 57LH346 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 32.9 | 23.4 | ITM 01 |
| Unit Weight | g/m² | 30.4 | 42.7 | ITM 01 |
| Film Thickness | µm | 40 | 57 | ITM 02 |
| Gloss (45°) - Print Surface | 63 | 63 | ITM 14 | |
| Light Transmission | % | 25 | 22 | ITM 06 |
| Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | MPa | 105|185 | 95|185 | ITM 50 |
| Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -3.0 | ITM 37 | |
| Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 170|55 | 170|55 | ITM 50 |
| Elastic Modulus - MD|TD | MPa | 1700|2800 | 1600|2800 | ITM 50 |
Market Segments
- Fresh Produce
- Dairy Products
- Frozen Food
- Health and Beauty Care
- Household and Detergents
- Industrial
- Beverage, Alcoholic
- Beverage, Carbonated
- Beverage, Mineral Waters
- Food, bottled and canistered
- Labels, Self-Adhesive
- Automotive
Processing Method
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
- Surface Print Unsupported
- Water-based Flexographic Printing
- Thermal Transfer printing
- UV Offset Lithography Printing
- UV Flexographic Printing
- UV Letterpress Printing
- UV Screen Printing
- Cold Foil Stamping
- Hot Stamping
- UV Inkjet
- Dry Toner Print System
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
