Ethy-Lyte™ HD240 - Oriented Polyethylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

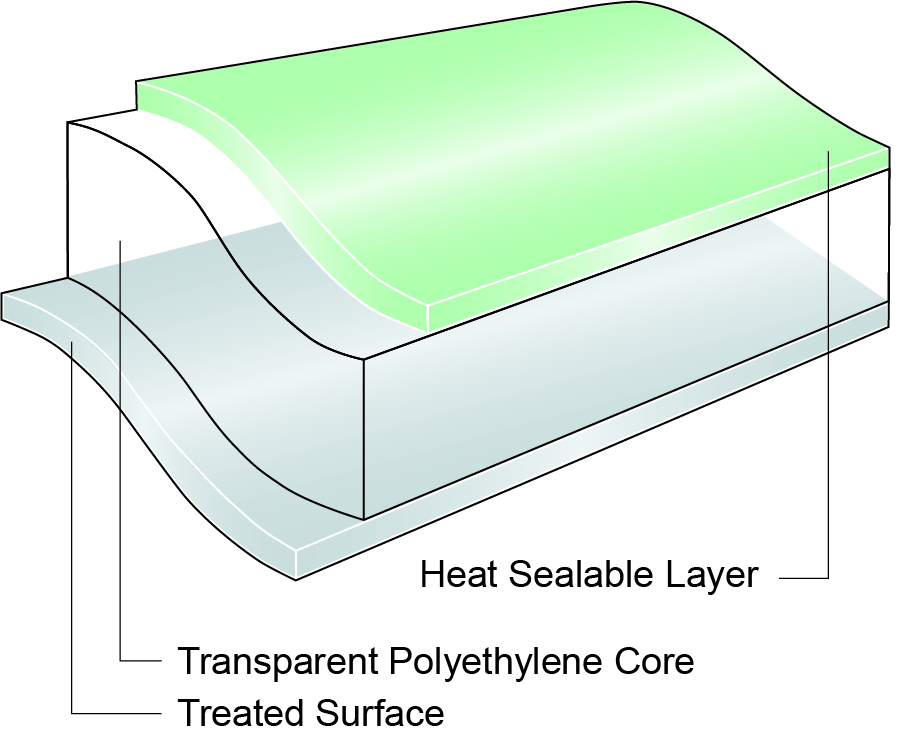

Ethy-lyteTM HD240 films are one side treated, one side sealable biaxially oriented high density polyethylene (BOPE) films designed as a sealable high performance print web, setting a new market standard in recyclable films.

HD240 films are sealable to itself, Sealtough™, blown PE and OPP films and suitable for multiple types of seals: lap seal, gusset or bottom sealing and also for single web applications with easy opening performance, etc.

Lamination of HD240 as an outer web with other PE films generates fully recyclable polyethylene structures.

Due to superior performance in packaging processes, HD240 is suitable for a broad range of applications.

Key Features

  • Sealable film with best performance in printing and lamination
  • Very good sealability of the untreated surface with a wide range of polyethylene for lap seal applications
  • High mechanical stability
  • Good transparency
  • Consistent coefficient of friction


Properties & Typical Values

PropertiesUnit25HD240Test Method
Yieldin²/lb31,000ITM 01
Unit Weightlb/ream13.9ITM 01
Film Thicknessmil0.95ITM 02
Gloss (45°)
Untreated Surface
Gloss Units70ITM 14
Haze%9ITM 06
Elastic Modulus - MD|TDpsi190,000|260,000ITM 50
Minimum Sealing Temperature
(Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat
°F195ITM 26
Coefficient of Friction - Untreated/Untreated0.3ITM 20
Treatment - Treated Surfacedyne/cm40ITM 16
Water Vapor Transmission Rate - 100°F, 90% RHg/100 in²/24 hr0.32ITM 46
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Bakery
  • Fresh Produce
  • Frozen Food
  • Health and Beauty Care
  • Household and Detergents
  • Crisps and Snacks
  • Pet Food

Applications

  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging
  • Pouches - Flexible Packaging
  • Stand Up Pouch - Flexible Packaging

Processing Method

  • Outer Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Water-based Flexographic Printing
  • Outer Web Extrusion Lamination

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : July 10, 2025
