Label-Lyte™ ML580 - Oriented Polypropylene Film
Product Description

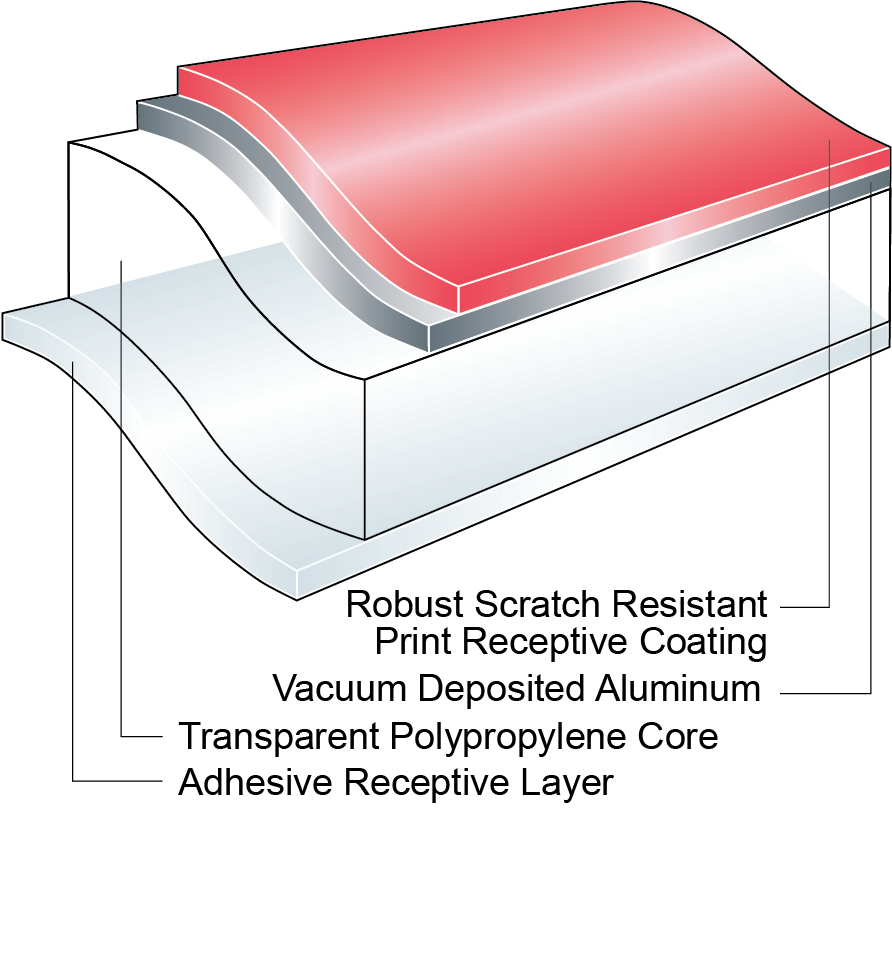

Label-Lyte™ ML580 is a metallized, surface printable OPP film designed for pressure sensitive applications where high-sheen metallized appearance and high-speed press performance are desired. The proprietary top-coated metal print surface is designed for scratch resistance and for excellent print receptivity to a broad base of ink chemistries. The coating on the print surface is similar to that on LL345. ML580 is compatible with UV flexo, letterpress, screen and offset systems. Additionally, it is compatible with water-based flexo and solvent-based gravure systems. The adhesive surface is uncoated and may require bare roll treatment.
Key Features
- High sheen metal appearance
- Scratch resistant on metal side
- Excellent compatibility with a broad range of ink systems, including UV printing technologies
- Excellent "in-to-out" blocking resistance
Properties & Typical Values
| Properties | Unit | 30ML580 | 46ML580 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 37.2 | 23.5 | ITM 01 |
| Unit Weight | g/m² | 27 | 42.6 | ITM 01 |
| Film Thickness | µm | 30 | 46 | ITM 02 |
| Optical Density | 2.1 | 2.3 | ITM 11 | |
| Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | MPa | 120|245 | 120|245 | ITM 50 |
| Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -4.0|-2.0 | -4.0|-2.0 | ITM 37 |
| Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 175|65 | 175|65 | ITM 50 |
| Elastic Modulus - MD|TD | MPa | 2000|3500 | 2000|3500 | ITM 50 |
Market Segments
- Health and Beauty Care
- Household and Detergents
- Beverage, Alcoholic
- Beverage, Carbonated
- Beverage, Mineral Waters
Applications
- Pressure Sensitive Labels
Processing Method
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
- Water-based Flexographic Printing
- UV Offset Lithography Printing
- UV Flexographic Printing
- UV Letterpress Printing
- UV Screen Printing
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
