Label-Lyte™ ZH247 - Oriented Polypropylene Film
LABEL PRODUCT DATA SHEET
Product Description

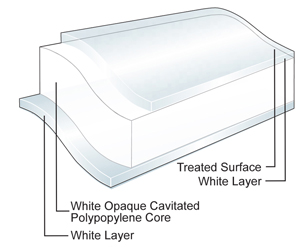

Super white opaque, cavitated BOPP film for Pressure Sensitive (PSL) labelling applications where good optical properties are required. ZH247 also shows excellent performances on reel-fed wrap-around labelling machines, where its high stiffness is particularly appreciated.
Key Features
- Outstanding white opaque background and superb white gloss finish
- Good printability on outside treated side
- Compatibility with most adhesive formulations
- Excellent stiffness and flex resistance
- Very good moisture resistance
- Good overall converting, diecutting, and dispensing properties
Properties & Typical Values
| Properties | Unit | 50ZH247 | 56ZH247 | Test Method |
|---|---|---|---|---|
| Yield | m²/kg | 27.5 | 24.8 | ITM 01 |
| Unit Weight | g/m² | 36.3 | 40.3 | ITM 01 |
| Film Thickness | µm | 50 | 56 | ITM 02 |
| Gloss (45°) | 70 | 70 | ITM 14 | |
| Light Transmission | % | 22 | 23 | ITM 06 |
| Tensile Strength at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | MPa | 105|185 | 90|200 | ITM 50 |
| Dimensional Stability 135°C / 275°F, 7 min - MD|TD | % | -3.0 | -5.0|-3.0 | ITM 37 |
| Elongation at Break - MD|TD 200 mm/min pull rate, 120 mm jaw separation | % | 170|55 | 170|55 | ITM 50 |
| Elastic Modulus - MD|TD | MPa | 1700|2800 | 1700|2800 | ITM 50 |
Typical values should not be construed as finished product specifications (FPS).
Market Segments
- Biscuits/Cookie/Crackers
- Bakery
- Dairy Products
- Health and Beauty Care
- Household and Detergents
- Dry Foods and Beverage Powders
- Industrial
- Beverage, Alcoholic
- Beverage, Carbonated
- Beverage, Mineral Waters
Applications
- Pressure Sensitive Labels
Processing Method
- Inner Web Adhesive Lamination
- Solvent Flexographic Printing
- Solvent Rotogravure Printing
- Surface Print Unsupported
- Water-based Flexographic Printing
- UV Offset Lithography Printing
- UV Flexographic Printing
- UV Letterpress Printing
Food Contact
Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/
© 2026 Jindal Films. Information is provided without warranty, express or implied, and is believed to be reliable but not guaranteed; Typical values are not final product specifications.
