Metallyte™ MM883 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

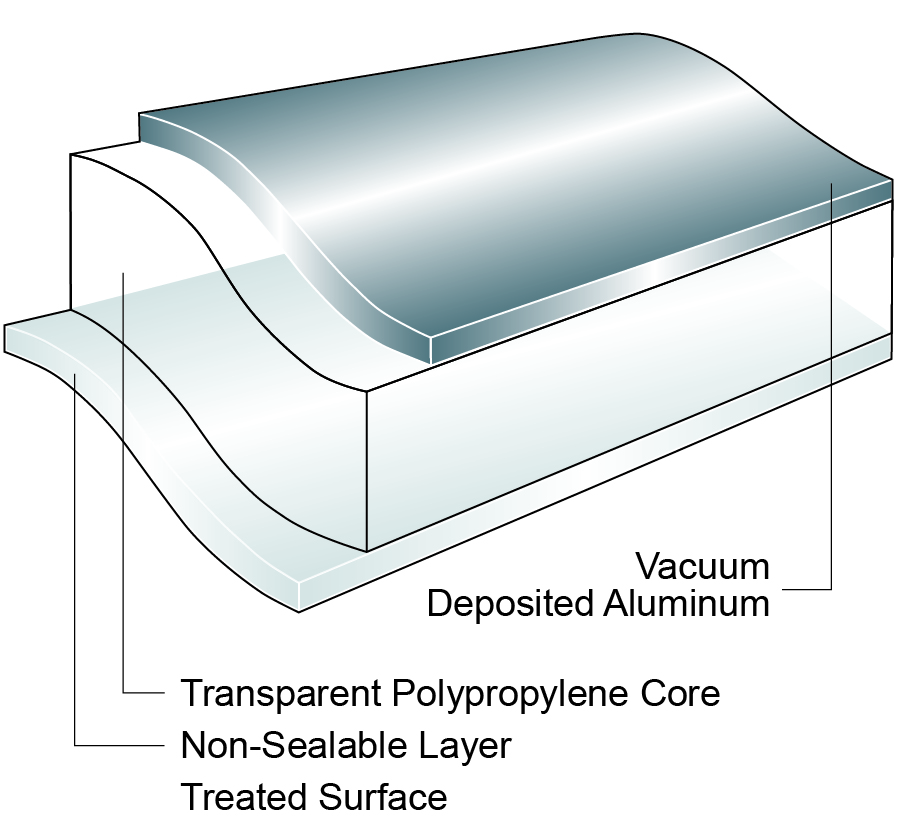

Metallyte™ MM883 is an ultra-high barrier, biaxially oriented multi-layer polypropylene film. This film has an exceptional barrier to oxygen, flavors and aromas and has an excellent water vapor barrier. The non-metallized side is treated for adhesive lamination and cold seal applications.





Key Features

  • Very high water and gas barrier
  • Good aroma and flavor protection
  • Excellent metal adhesion
  • Easy convertibility on both sides
  • Excellent puncture resistance
  • Improved barrier to Mineral Oils compared to non-barrier film (1)
  • Significant mineral oils contamination protection period of more than 2 years


Properties & Typical Values

PropertiesUnit16MM883Test Method
Yieldm²/kg71.2ITM 01
Unit Weightg/m²14.1ITM 01
Film Thicknessµm16ITM 02
Light Transmission%0.2ITM 06
Optical Density2.8ITM 11
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-5.0ITM 37
Treatment - Treated Surfacedyne/cm38ITM 16
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr0.1ITM 46
Oxygen Transmission Rate - 23°C, 0% RHcm³/m²/24 hr0.1ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Confectionery, Sugar
  • Confectionery, Chocolate
  • Health and Beauty Care
  • Household and Detergents
  • Crisps and Snacks
  • Dry Foods and Beverage Powders
  • Pet Food
  • Dried Fruits and Nuts

Applications

  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging
  • Pouches - Flexible Packaging

Processing Method

  • Cold Seal Adhesive
  • Outer Web Adhesive Lamination
  • Middle Web Adhesive Lamination
  • Middle Web Extrusion Lamination

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • In-line treatment of the metalized surface is suggested for laminating.
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines.

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

  1. (1) Please contact your sales representative to get quantitative data on film barrier properties to Mineral Oils (MOSH and MOAH).
  2. Please contact your Sales Representative for complete country availability.
Revision date : June 18, 2025
