Metallyte™ MM488 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

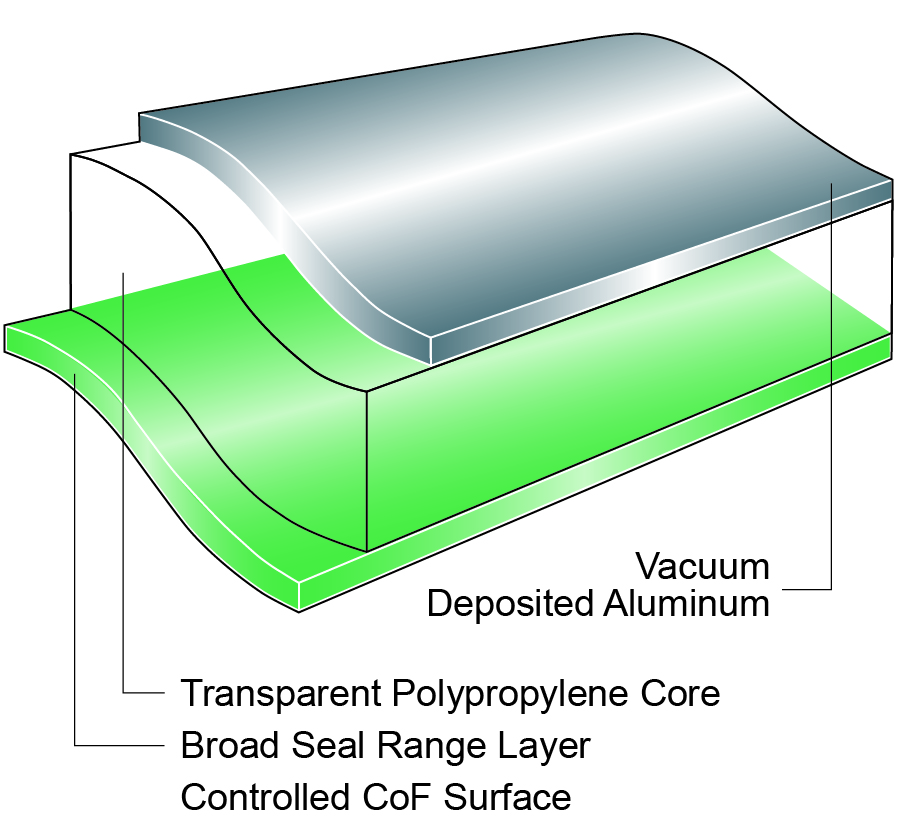

Metallyte™ MM488 is a metallized biaxially oriented polypropylene film, metallized on one side. MM488 is typically used in laminates as the inner web for VFFS and HFFS applications. Due to its slip controlled broad seal range surface, film offers excellent performance on all types of VFFS packaging machines. When laminated with standard coex, it can be lap sealed.

Key Features

  • Good adhesion of aluminum layer to film
  • Good moisture barrier and light barrier
  • Slip controlled sealing layer
  • Good oxygen barrier
  • Good hot tack
  • Broad seal range for good performance on HFFS machines and VFFS
  • Cold seal receptive


Properties & Typical Values

PropertiesUnit12MM48815MM48818MM488Test Method
Yieldm²/kg91.673.361.1ITM 01
Unit Weightg/m²10.913.716.4ITM 01
Film Thicknessµm121518ITM 02
Optical Density2.32.32.3ITM 11
Tensile Strength at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		Mpa150|290150|290150|290ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-6.5|-4.5-6.5|-4.5-6.5|-4.5ITM 37
Elongation at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		%205|55205|55175|60ITM 50
Elastic Modulus - MD|TDMpa2000|37002000|37002000|3600ITM 50
Minimum Sealing Temperature
(Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat
Non-metallized side		°C110110110ITM 26
Heat Seal Range (RDM)
RDM-25N/cm²-0.5 sec-Flat/Flat		°C404040ITM 26
Coefficient of Friction - Unmetallized Side0.320.320.40ITM 20
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr0.300.300.30ITM 46
Oxygen Transmission Rate - 23°C, 0% RHcm³/m²/24 hr505050ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Box Overwrap
  • Confectionery, Gum
  • Confectionery, Sugar
  • Bakery
  • Confectionery, Chocolate
  • Frozen Food
  • Crisps and Snacks
  • Dry Foods and Beverage Powders
  • Pet Food
  • Ice Cream

Applications

  • HFFS Flexible Packaging
  • VFFS Flexible Packaging

Processing Method

  • Cold Seal Adhesive
  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • In-line treatment and priming are recommended for printing on the metalized surface.
  • In-line treatment of the metalized surface is suggested for laminating.
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines.

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

Please contact your Sales Representative for complete country availability.

Revision date : June 20, 2025

© 2026 Jindal Films. Information is provided without warranty, express or implied, and is believed to be reliable but not guaranteed; Typical values are not final product specifications.
