Label-Lyte™ DL247 - Oriented Polypropylene Film

LABEL PRODUCT DATA SHEET

Product Description

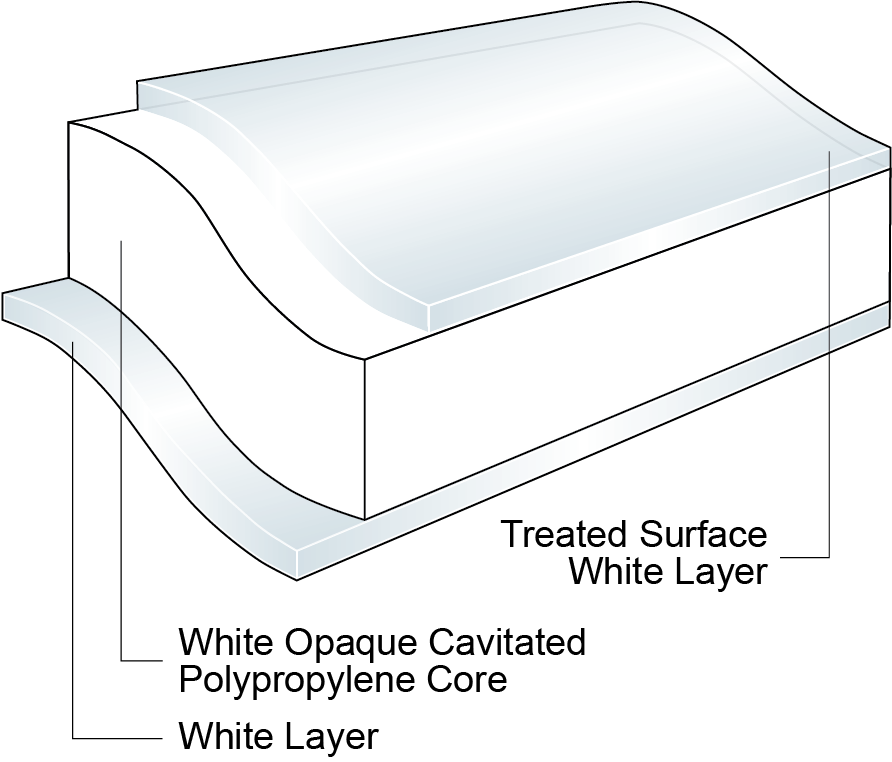

Label-Lyte™ DL247 is a super white opaque, high gloss, high yield and highly cavitated biaxially oriented polypropylene film designed for use in reel-fed wrap-around labelling applications where superior graphics are desired.

Key Features

  • Outstanding opacity and whiteness
  • Exceptional printability
  • Excellent hot melt anchorage
  • Excellent stiffness
  • High tear and split resistance
  • High resistance to elongation on labelling machine
  • Good mold resistance
  • High slip on untreated side for optimised performance on the most demanding machines.


Properties & Typical Values

PropertiesUnit33DL24738DL247Test Method
Yieldin²/lb3970034300ITM 01
Unit Weightlb/ream10.912.6ITM 01
Film Thicknessmil1.31.5ITM 02
Gloss (45°)Gloss Units7070ITM 14
Light Transmission%25.021.0ITM 06
Whiteness Index9090ITM 12
Tensile Strength at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation		psi13100|1740012300|17400ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-4.0-3.0ITM 37
Elongation at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation		%120|45110|40ITM 50
Elastic Modulus - MD|TDpsi174000|261000174000|261000ITM 50
Coefficient of Friction - Untreated Surface0.400.40ITM 20
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Dairy Products
  • Health and Beauty Care
  • Household and Detergents
  • Industrial
  • Beverage, Alcoholic
  • Beverage, Carbonated
  • Beverage, Mineral Waters

Applications

  • Reel Fed Labels

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • UV Offset Lithography Printing
  • UV Flexographic Printing

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • Treatment: Available one-side treated
  • Refreshing of the processable side before usage is recommended.
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

Please contact your Sales Representative for complete country availability.

Revision date : June 05, 2024

© 2026 Jindal Films. Information is provided without warranty, express or implied, and is believed to be reliable but not guaranteed; Typical values are not final product specifications.
