Label-Lyte™ 50LH247

Oriented Polypropylene Film

Product Description

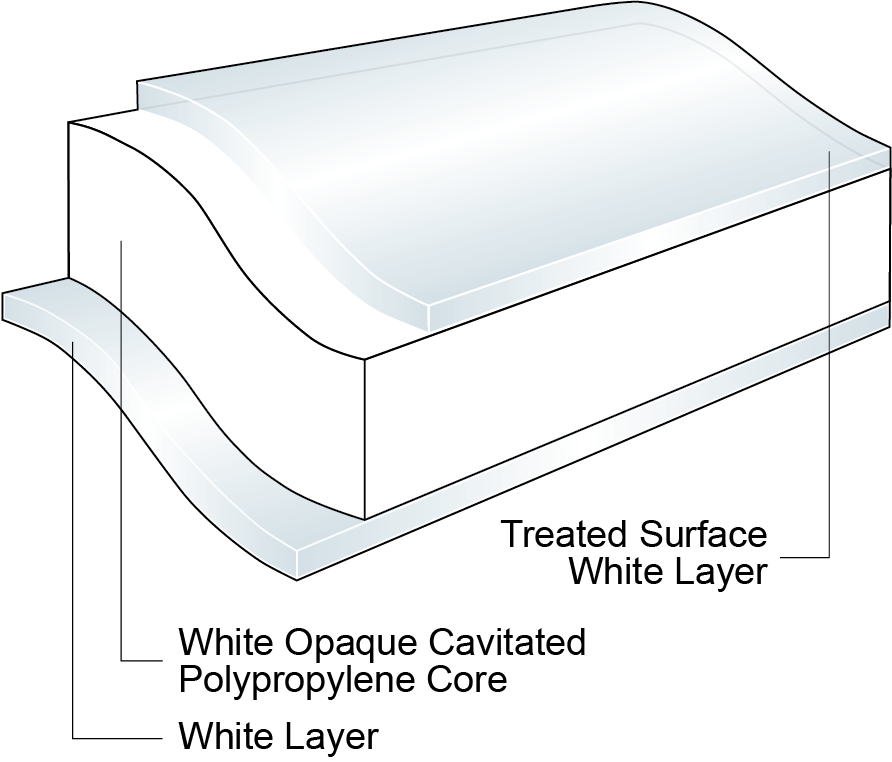

Labellyte 50LH247 is a super white opaque, cavitated BOPP film for Pressure Sensitive (PSA) labelling applications where superior optics are desired. LH247 also shows excellent performances on reel-fed wrap-around labelling machines, where its high stiffness is particularly appreciated.

Key Features

  • Outstanding white opaque background and superb white gloss finish
  • Good printability on outside treated side
  • Compatibility with most adhesive formulations
  • Excellent stiffness and flex resistance
  • Very good moisture resistance
  • Good overall converting, diecutting, and dispensing properties

General

Availability

  • Africa & Middle East
  • Asia Pacific
  • Europe

Applications

  • Dairy Products
  • Industrial

Uses

  • Pressure Sensitive Labels
  • Reel Fed Labels

Appearance

  • White

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing
  • UV Offset Lithography Printing
  • UV Flexographic Printing
  • UV Letterpress Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 19300in²/lb Internal Method
Unit Weight 22.3lb/ream Internal Method
Film Thickness 2.0mil Internal Method
Gloss 70Gloss Unit Internal Method
Light Transmission 22.0% Internal Method
Tensile Strength at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 15200psi Internal Method
TD 26800psi Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -3.0% Internal Method
TD -3.0% Internal Method
Elongation at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 170% Internal Method
TD 55% Internal Method
Elastic Modulus
MD 247000psi Internal Method
TD 406000psi Internal Method
Coefficient of Friction
Untreated Surface 0.60 Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • Treatment: Available one-side treated

Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.

Revision date

  • March 12, 2021
