Label-Lyte™ LW280 - Oriented Polypropylene Film

LABEL PRODUCT DATA SHEET

Product Description

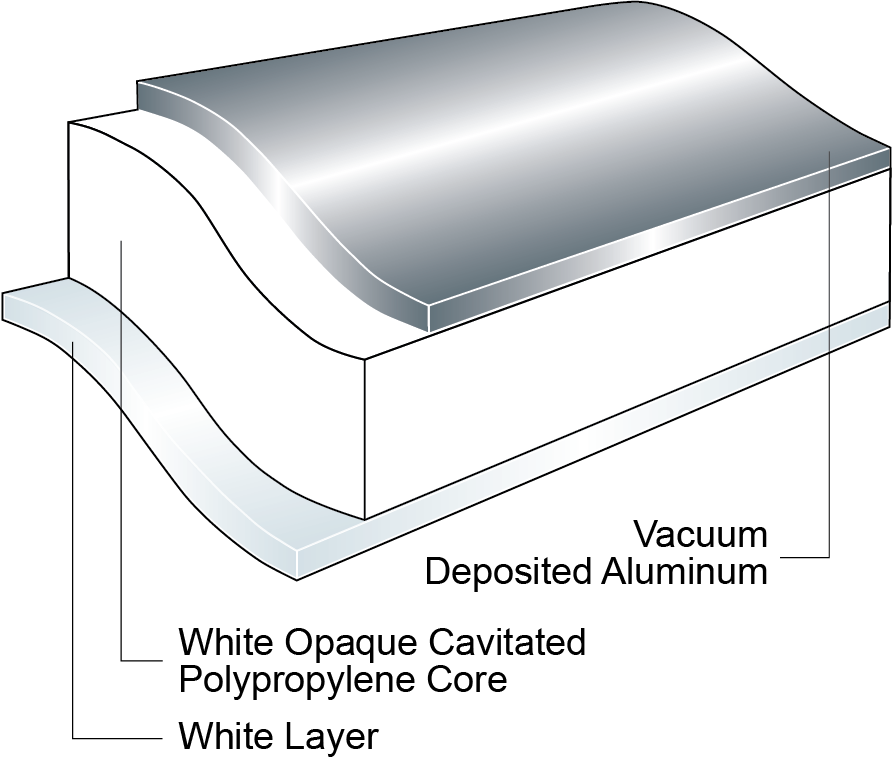

Label-Lyte LW280 is a super white opaque slip controlled, biaxially oriented polypropylene film, metallized on one side. Designed for use in reel-fed wrap-around applications, where outstanding metallized appearance and superior graphics are desired.

Key Features

  • Brilliant metal appearance
  • Excellent adhesion of aluminium to film
  • Slip controlled unmetallized surface
  • High tear and split resistance
  • High resistance to elongation on labelling machine
  • Excellent stiffness
  • Excellent mechanical properties
  • Good mold resistance


Properties & Typical Values

PropertiesUnit38LW280Test Method
Yieldin²/lb29800ITM 01
Unit Weightlb/ream14.5ITM 01
Film Thicknessmil1.5ITM 02
Gloss (45°)Gloss Units75ITM 14
Optical Density1.9ITM 11
Tensile Strength at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation
psi14500|22500ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD
%-6.0ITM 37
Elongation at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation
%140|50ITM 50
Elastic Modulus - MD|TDpsi189000|305000ITM 50
Coefficient of Friction - Untreated Surface0.40ITM 20
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Dairy Products
  • Health and Beauty Care
  • Household and Detergents
  • Industrial
  • Beverage, Alcoholic
  • Beverage, Carbonated
  • Beverage, Mineral Waters

Applications

  • Reel Fed Labels

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • UV Offset Lithography Printing
  • UV Flexographic Printing

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : June 04, 2024
