Label-Lyte™ LH247 - Oriented Polypropylene Film

LABEL PRODUCT DATA SHEET

Product Description

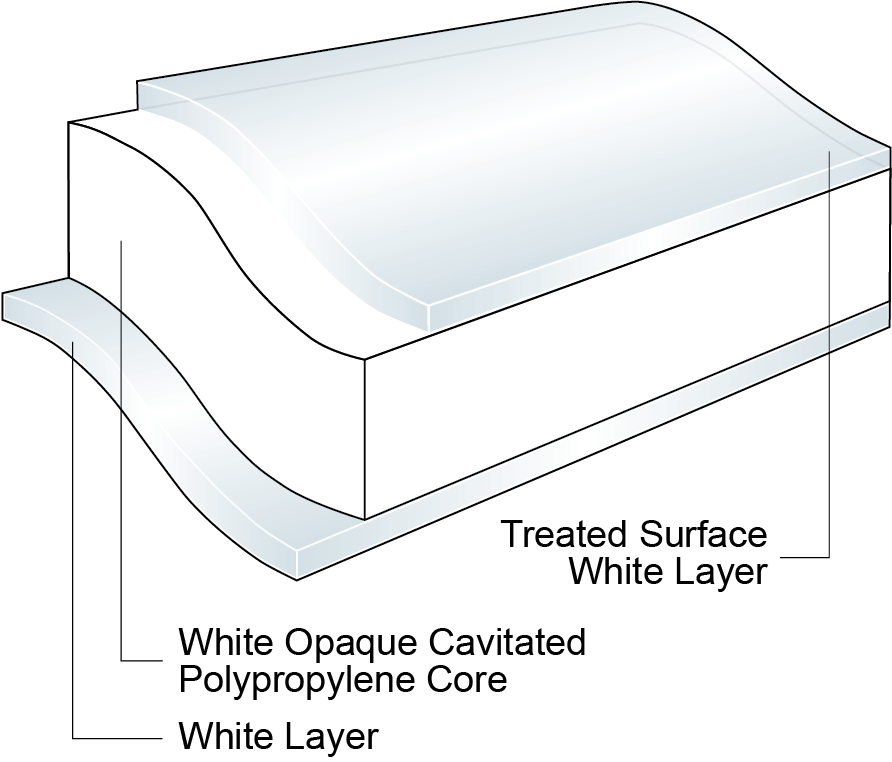

Label-Lyte™ LH247 is a super white opaque, cavitated BOPP film for Pressure Sensitive (PSA) labelling applications where superior optics are desired. LH247 also shows excellent performance on reel-fed wrap-around labelling machines, where its high stiffness is particularly appreciated.

Key Features

  • Outstanding white opaque background and superb white gloss finish
  • Good printability on outside treated side
  • Compatibility with most adhesive formulations
  • Excellent stiffness and flex resistance
  • Very good moisture resistance
  • Good overall converting, diecutting, and dispensing properties


Properties & Typical Values

PropertiesUnit35LH24740LH247Test Method
Yieldin²/lb2770024200ITM 01
Unit Weightlb/ream15.617.8ITM 01
Film Thicknessmil1.41.6ITM 02
Gloss (45°)Gloss Units7070ITM 14
Light Transmission%32.025.0ITM 06
Tensile Strength at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation		psi18100|3630015200|26800ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-3.0-3.0ITM 37
Elongation at Break - MD|TD
7.9 in/min pull rate, 4.9 in jaw separation		%190|55170|55ITM 50
Elastic Modulus - MD|TDpsi247000|406000247000|406000ITM 50
Coefficient of Friction - Untreated Surface0.600.60ITM 20
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Health and Beauty Care
  • Industrial

Applications

  • Pressure Sensitive Labels
  • Reel Fed Labels

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing
  • UV Offset Lithography Printing
  • UV Flexographic Printing
  • UV Letterpress Printing

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • Treatment: Available one-side treated
  • Refreshing of the processable side before usage is recommended. Treatement of the glue receptive layer is highly recommended
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

Please contact your Sales Representative for complete country availability.

Revision date : April 23, 2024

© 2026 Jindal Films. Information is provided without warranty, express or implied, and is believed to be reliable but not guaranteed; Typical values are not final product specifications.
