Metallyte™ MM288 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET Preliminary

Product Description

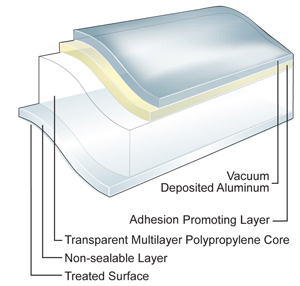

Metallyte MM288 is a high barrier non-sealable OPP film, one-side metallized and one-side corona treated. MM288 is designed for use as the center web of a triplex lamination. It can also be used as the inner web of a cold seal lamination. The treated surface offers good compatibility with adhesives and cold seal laminations.

Key Features

  • Excellent moisture barrier
  • Excellent light barrier
  • Good gas barrier
  • Enhances puncture resistance of the package
  • Two side processible


Properties & Typical Values

PropertiesUnit15MM288Test Method
Yieldm²/kg73.2ITM 01
Unit Weightg/m²13.7ITM 01
Film Thicknessµm15ITM 02
Optical Density2.8ITM 11
Dimensional Stability
135°C / 275°F, 7 min - MD|TD
%-5.0ITM 37
Treatment - Treated Surfacedyne/cm38ITM 16
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr0.10ITM 46
Oxygen Transmission Rate - 23°C, 0% RHcm³/m²/24 hr25ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Tobacco
  • Confectionery, Chocolate
  • Health and Beauty Care
  • Household and Detergents
  • Crisps and Snacks
  • Dry Foods and Beverage Powders
  • Pet Food
  • Dried Fruits and Nuts
  • Chips and Snacks
  • Condiments
  • Cereal Bars

Applications

  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging
  • Pouches - Flexible Packaging
  • Stand Up Pouch - Flexible Packaging
  • Flat Sachet

Processing Method

  • Cold Seal Adhesive
  • Inner Web Adhesive Lamination
  • Middle Web Adhesive Lamination

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : June 19, 2025
