Bicor™ MBH668 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET

Product Description

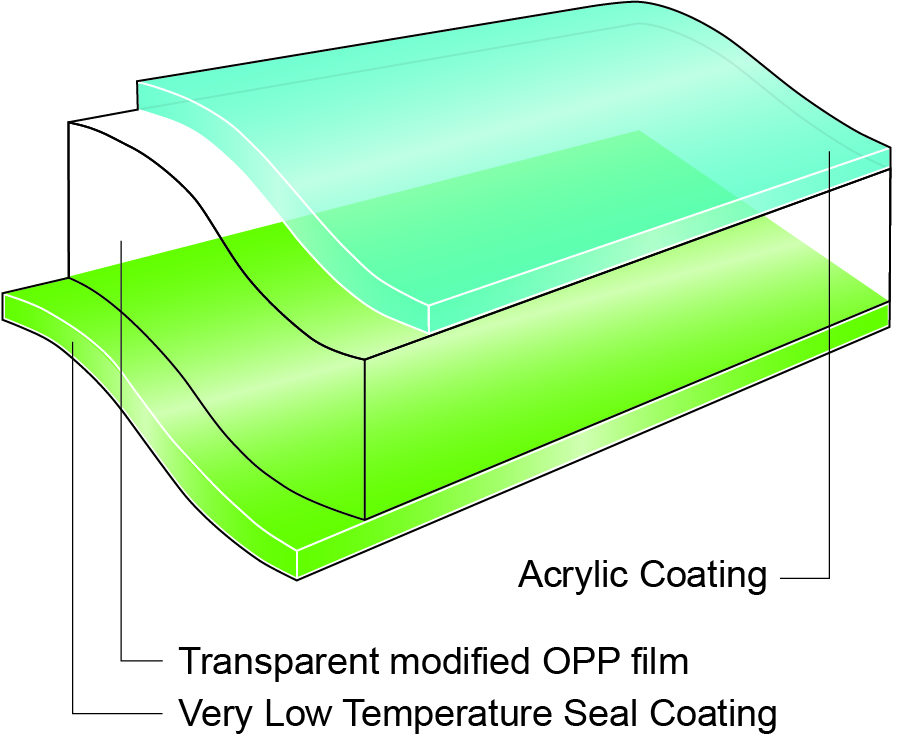

Bicor™ MBH668 is a high speed transparent, biaxially oriented polypropylene film with improved moisture barrier, coated one side acrylic, one side very low seal temperature (VLTS) coating. As for all MB668 products, VLTS coating provides excellent performances on high speed HFFS machines. Acrylic coating provides aroma barrier and excellent support for printing.

Key Features

  • Improved moisture barrier
  • Exceptionally wide seal range with low seal initiation temperature (SIT)
  • Good seal strength and hot-tack
  • Robust performance on horizontal flowpack machines (HFFS)
  • Good humidity seal retention on VLTS side
  • Good aroma barrier
  • Outstanding optical properties
  • Ideal support for printing
  • Water-based coatings
  • Improved barrier to mineral oils compared to non-barrier film 1


Properties & Typical Values

PropertiesUnit25MBH668Test Method
Yieldm²/kg44.2ITM 01
Unit Weightg/m²22.6ITM 01
Film Thicknessµm25ITM 02
Gloss (45°)Gloss Units85ITM 14
Haze%1.5ITM 06
Tensile Strength at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		Mpa150|250ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD		%-5|-3ITM 37
Elongation at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation		%200|60ITM 50
Elastic Modulus - MD|TDMpa2500|4000ITM 50
Minimum Sealing Temperature
(Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat
VLTSC / VLTSC		°C70ITM 26
Heat Seal Range (RDM) - VLTS/VLTS
RDM - 25N/cm² - 0.5 sec - Flat/Flat		°C80ITM 26
Coefficient of Friction
Acrylic/Acrylic0.3ITM 20
VLTS/VLTS0.40ITM 20
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr2.8ITM 46
Oxygen Transmission Rate - 23°C, 0% RHcm³/m²/24 hr850ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Confectionery, Gum
  • Confectionery, Sugar
  • Bakery
  • Confectionery, Chocolate
  • Frozen Food
  • Health and Beauty Care
  • Household and Detergents
  • Pet Food
  • Cereal Bars

Applications

  • HFFS Flexible Packaging

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • Acrylic and VLTSC coatings are not seal compatible.
  • Contact your Jindal Films Technical Service Representative for processing recommendations and guidelines.

Storage

You will find all information about storage conditions into the sign in area of our website: http://www.jindalfilms.com/login-register-docmg/ , under the section "Information on food safety and quality practices". The name of the document is "Storage recommendations".

Footnotes

  1. (1) Please contact your sales representative to get quantitative data on film barrier properties to Mineral Oils (MOSH and MOAH).
  2. Dimensional stability is reported for uncoated base film.
  3. Please contact your Sales Representative for complete country availability.
