Bicor™ MBH568 - Oriented Polypropylene Film

FLEXIBLE PACKAGING PRODUCT DATA SHEET Preliminary

Product Description

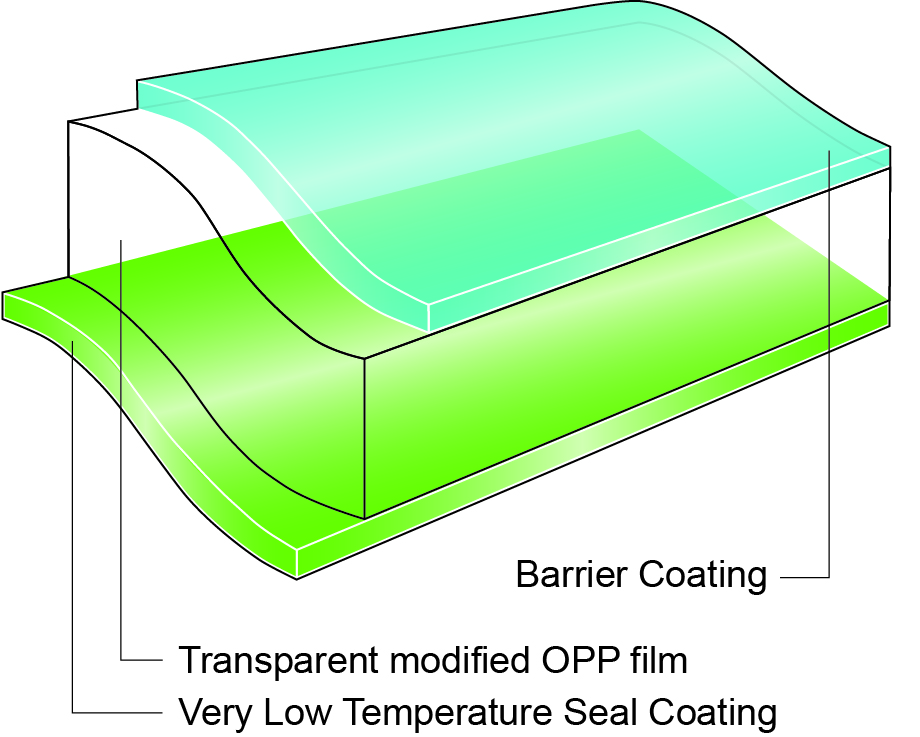

Bicor MBH568 is a transparent biaxially oriented polypropylene film  with improved barrier to moisture and gases, coated on one side with a modified printable barrier coating, one side with a very low seal temperature (VLTS) coating. As for all MB/MBX668 products, a VLTS coating provides excellent performances on high speed HFFS machines. The printable non-heat sealable barrier coating also provides good aroma and MO barrier and is an excellent support for printing.

Key Features

  • Improved moisture & gas barriers compared to PVdC coated OPP films
  • Exceptional wide seal range with low seal initiation temperature (SIT)
  • Good seal strength and hot-tack
  • Robust performance on horizontal flowpack machines (HFFS)
  • Good humidity seal retention on VLTS side
  • Good aroma barrier
  • Great optical properties
  • Ideal support for surface printing
  • Water-based coatings - non halogenated (PVdC-free)
  • Improved barrier to mineral oils compared to non-barrier film 1


Properties & Typical Values

PropertiesUnit25MBH56830MBH568Test Method
Yieldm²/kg45.436.4ITM 01
Unit Weightg/m²22.027.5ITM 01
Film Thicknessµm2530ITM 02
Gloss (45°)Gloss Units9595ITM 14
Haze%1.51.5ITM 06
Tensile Strength at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation
Mpa150|250150|250ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD
%-5|-3-5|-3ITM 37
Elongation at Break - MD|TD
200 mm/min pull rate, 120 mm jaw separation
%200|60200|60ITM 50
Elastic Modulus - MD|TDMpa2500|40002500|4000ITM 50
Minimum Sealing Temperature
(Min 300g/25mm) - 25N/cm2 - 0,5 sec - Flat/Flat
VLTSC / VLTSC
°C7575ITM 26
Heat Seal Range (RDM) - VLTS/VLTS
RDM - 25N/cm² - 0.5 sec - Flat/Flat
°C7575ITM 26
Coefficient of Friction
print coating/print coating0.30.3ITM 20
VLTS/VLTS0.400.40ITM 20
Water Vapor Transmission Rate - 38°C, 90% RHg/m²/24 hr3.12.7ITM 46
Oxygen Transmission Rate - 23°C, 0% RHcm³/m²/24 hr1010ITM 42
Oxygen Transmission Rate (Wet) - 23°C, 75% RHcm³/m²/24 hr1515ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Confectionery, Gum
  • Confectionery, Sugar
  • Bakery
  • Household and Detergents
  • Pet Food
  • Cereal Bars

Applications

  • HFFS Flexible Packaging

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : April 11, 2025
