Bicor™ 110 AXT

Product Description

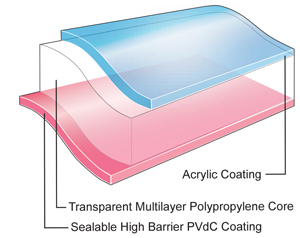

Bicor AXT is a two-side coated, sealable OPP film, delivering an advanced level of moisture and oxygen barrier protection. This film is designed for use in unsupported and surface printed horizontal or vertical packaging applications. With a converter-applied hermetic sealant, AXT is an excellent outer web for gas flush vertical packs or pouches of shredded or grated natural cheese, replacing films like PVdC coated cellophane, PET and Nylon. AXT is lap-sealable to itself.

Key Features

  • Robust machinability
  • Low and consistent COF
  • Outstanding optical properties
  • Excellent barrier performance
  • Outstanding flavor and aroma barrier
  • Excellent oxygen barrier
  • Excellent moisture barrier

General

Availability

  • Latin America
  • North America
  • South America

Features

  • Acrylic Coated
  • Flavor & Aroma Barrier
  • In Lamination Lap Sealable
  • Gas Barrier
  • Moisture Barrier
  • Oxygen Barrier
  • PVdC Coated
  • High Barrier PVdC Coated
  • High Barrier Printable PVdC Coated
  • Sealable High Barrier PVdC Coated

Applications

  • Biscuits/Cookie/Crackers
  • Box Overwrap
  • Confectionery, Gum
  • Confectionery, Sugar
  • Bakery
  • Pet Food

Uses

  • Box Overwrap Flexible Packaging
  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging

Appearance

  • Clear/Transparent

Processing Method

  • Cold Seal Adhesive
  • Inner Web Adhesive Lamination
  • Outer Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing
  • Outer Web Extrusion Lamination


Properties

PropertyTypical ValueUnitTest Based On
Yield 39.0m²/kg Internal Method
Unit Weight 25.6g/m² Internal Method
Film Thickness 28µ Internal Method
Gloss(45°)
Acrylic Surface 103 Internal Method
Haze 1.5% Internal Method
Tensile Strength at Break
510 mm/min pull rate, 50 mm jaw separation
MD 117Mpa Internal Method
TD 228Mpa Internal Method
Dimensional Stability 135°C / 275°F, 7 min
MD -4.5% Internal Method
TD -4.0% Internal Method
Crimp Seal Strength
PVdC/PVdC
127°C, 0.1 Mpa, 0.75 sec 610g/2.5 cm Internal Method
Crimp Seal MST (Minimum Seal Temperature)
PVdC/PVdC 103°C Internal Method
Coefficient of Friction
Acrylic/Acrylic 0.28 Internal Method
Water Vapor Transmission Rate
38°C, 90% RH 2.0g/m²/24 hr Internal Method
Oxygen Transmission Rate
23°C, 0% RH 4.7cm³/m²/24 hr Internal Method

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • Acrylic coating and its properties can be affected by extreme humidity and water condensation. Thorough testing is recommended when considering acrylic-coated films in refrigerated or frozen applications.
  • Acrylic coating must be primed if used in extrusion lamination.
  • With PVdC coating, priming or treating is recommended for stronger extrusion bonds.
  • Acrylic is an excellent surface for water-based or solvent-based inks, adhesives and code-dating (cold wet or hot stamp) without treatment.
  • To avoid blocking, ghosting, high residual solvents, or decreased sealability, converters should eliminate the use of slow solvents (cellosolve, glycol ethers, MIBK, butanol, etc) when printing on acrylic surfaces. The use of esters should be minimized.



Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.
  2. Dimensional stability is reported for uncoated base film.
  3. Tested at 38°C (100°F)/100%RH, then calculated to 90%RH with .90 multiplier.
  4. Sample dimensions and conditioning vary due to differences in equipment design.

Revision date

  • July 14, 2016

Typical properties: these are not to be construed as specifications.
