Bicor™ 23LPX2

Preliminary

Oriented Polypropylene Film

Product Description

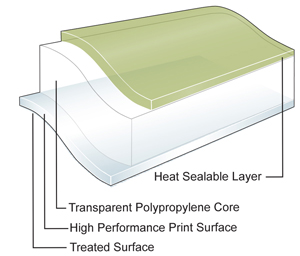

Bicor LPX2 is a one-side treated, one-side sealable OPP film designed for use in a lamination. It can be laminated to Metallyte, HBS2, and itself to create lap sealable packages.

Key Features

  • Excellent machinability as the outer web of laminations in HFFS and VFFS applications
  • Excellent solventless adhesive lamination and wet-out
  • Excellent ink adhesion and bond strengths in adhesive, PVdC adhesive, and extrusion laminations
  • Lap seals to OPP coex sealants
  • Non-migratory slip system for consistent COF
  • Optimal print dot structure and minimization of pin-holing
  • Outstanding graphics in both four and multicolor process print applications

General

Availability

  • Latin America
  • North America
  • South America

Features

  • In Lamination Lap Sealable

Applications

  • Biscuits/Cookie/Crackers
  • Confectionery, Gum
  • Confectionery, Sugar
  • Bakery
  • Crisps and Snacks

Uses

  • HFFS Flexible Packaging
  • VFFS Flexible Packaging

Appearance

  • Clear/Transparent

Processing Method

  • Outer Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing
  • Outer Web Extrusion Lamination


Properties

PropertyTypical ValueUnitTest Based On
Yield 34000in²/lb Internal Method
Unit Weight 12.7lb/ream Internal Method
Film Thickness 0.90mil Internal Method
Gloss
Untreated Surface 87 Internal Method
Haze 2.7% Internal Method
Tensile Strength at Break
20 in/min pull rate, 2.0 in jaw separation
MD 16400psi Internal Method
TD 30300psi Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -7.0% Internal Method
TD -6.0% Internal Method
Crimp Seal (MST)
Untreated/Untreated 217°F Internal Method
Coefficient of Friction
Slip Modified/Slip Modified 0.25 Internal Method
Wetting Tension
Treated Surface 0.80receding cos θ Internal Method
Water Vapor Transmission Rate
100°F, 90% RH 0.37g/100 in²/24 hr Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • This film contains a non-migratory slip system. Do not retreat.
  • This film can be run on HFFS and VFFS machines.
  • When using LPX2 as the inner web for demanding VFFS applications, thorough evaluation is recommended.
  • This film is suitable for surface print, unsupported applications.



Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.
  2. Tested at 38°C (100°F)/100%RH, then calculated to 90%RH with .90 multiplier.

Revision date

  • January 05, 2021
