Label-Lyte™ 25LL102

Oriented Polypropylene Film

Product Description

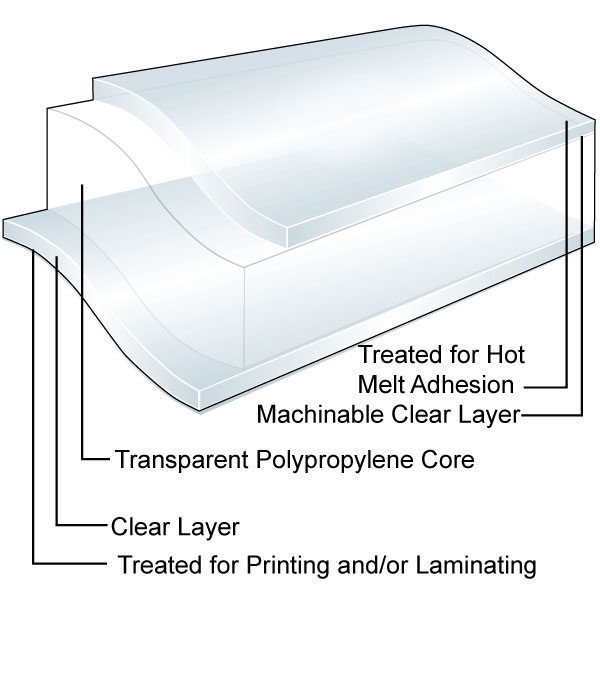

Label-Lyte LL102 is a clear, two-side treated, polypropylene film that is used in roll-fed labeling applications.  This film can be laminated to itself or applied as an outer web to other films.  LL102 is formulated with a proprietary non-migratory slip system.  The print surface is treated and can be printed with water-based or solvent-based flexo and gravure inks, and is the intended print and laminating surface.  The opposite surface is treated to promote holt melt adhesion.

Key Features

  • Outstanding clarity and gloss
  • Excellent ink adhesion with solvent-based and water-based ink systems
  • Excellent bond strength with most laminating adhesives
  • Contains non-migratory slip system for outstanding performance on roll-fed labeling machines
  • Good hot melt adhesion

General

Availability

  • Latin America
  • North America
  • South America

Applications

  • Dairy Products
  • Dry Foods and Beverage Powders
  • Beverage, Carbonated
  • Beverage, Mineral Waters

Uses

  • Reel Fed Labels

Appearance

  • Clear/Transparent

Processing Method

  • Inner Web Adhesive Lamination
  • Outer Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 30,500in²/lb Internal Method
Unit Weight 14.2lb/ream Internal Method
Film Thickness 1.0mil Internal Method
Gloss
Machinable Surface 90 Internal Method
Haze 2.0% Internal Method
Tensile Strength at Break
20 in/min pull rate, 2.0 in jaw separation
MD 20000psi Internal Method
TD 35000psi Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -5.0% Internal Method
TD -5.0% Internal Method
Elongation at Break
20 in/min pull rate, 2.0 in jaw separation
MD 160% Internal Method
TD 45% Internal Method
Coefficient of Friction
Machinable/Machinable 0.40 Internal Method
Wetting Tension
Machinable Surface 0.80receding cos θ Internal Method
High Energy Surface 0.85receding cos θ Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • The print surface of LL102 provides excellent ink adhesion and strong lamination bonds. There is no need to re-treat on press.
  • The treated machinable surface provides good hot melt adhesive anchorage.
  • This film utilizes a non-migratory slip system, which provides consistent COF through all processing steps

Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.

Revision date

  • October 17, 2016
