Digilyte™ 50MD580

Oriented Polypropylene Film

Product Description

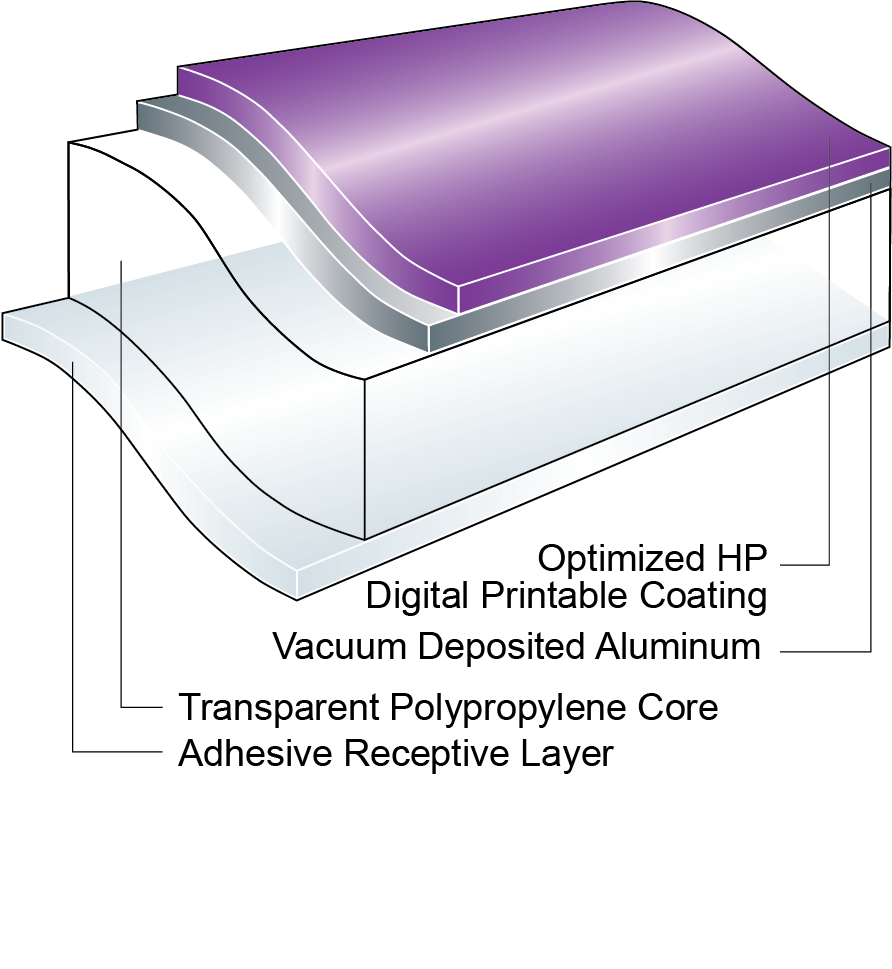

Digilyte 50MD580 is a metallized, surface printable OPP film designed for pressure sensitive applications where high-sheen metallized appearance is desired. The proprietary top-coated metal print surface is designed for scratch resistance and for excellent print on HP Indigo Dygital presses.

Key Features

  • Pre-optimized coating for HP Indigo Digital presses
  • High sheen metal appearance
  • HP Indigo approved ´3 stars´ coating
  • Scratch resistant on metal side
  • Excellent Indigo electro inks adhesion
  • Food contact approved

General

Availability

  • Africa & Middle East
  • Asia Pacific
  • Europe

Features

  • ElectroInk Receptive Coated

Applications

  • Labels, Self-Adhesive

Uses

  • Pressure Sensitive Labels

Appearance

  • Metallized - Clear

Processing Method

  • Digital Offset (HP Indigo) Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 15300in²/lb Internal Method
Unit Weight 28.2lb/ream Internal Method
Film Thickness 2.0mil Internal Method
Optical Density 2.3 Internal Method
Tensile Strength at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 17400psi Internal Method
TD 35500psi Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -4.0% Internal Method
TD -2.0% Internal Method
Elongation at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 175% Internal Method
TD 65% Internal Method
Elastic Modulus
MD 290000psi Internal Method
TD 508000psi Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • 50MD580 rolls are sensitive to damage from improper handling. The use of a sling is recommended. Avoid direct web contact with the floor or a pallet. Rolls should not be dropped or rolled.
  • The coated print surface may not be compatible with all releaser iners. Compatibility testing is stongly recommended.
  • This film is not intended for use in unprinted zigzag applications, in which the coated print surface is in contact with itself.
  • Recommended storage conditions for coated PSL films are, temperature: 15oC - 30oC (59oF - 85oF); humidity: 40% to 65% RH.

Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.

Revision date

  • March 15, 2021
