Label-Lyte™ 57DL247

Preliminary

Oriented Polypropylene Film

Product Description

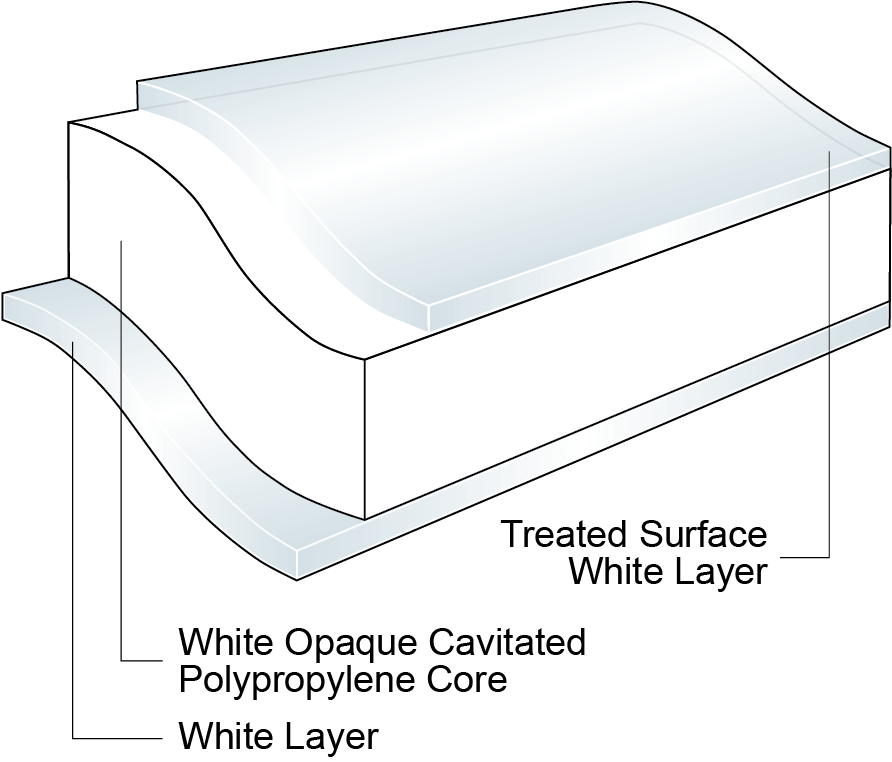

Label-Lyte 57DL247 is a super-white opaque, highly cavitated BOPP film for pressure-sensitive (PSA) labeling applications where good optical properties are required.

Key Features

  • Outstanding high yield
  • Low density
  • Outstanding white-opaque background and superb white gloss finish
  • Good printability on outside treated side
  • Compatibility with most adhesive formulations
  • Excellent stiffness
  • Very good moisture resistance
  • Good overall converting, die-cutting and dispensing properties.

General

Availability

  • Africa & Middle East
  • Asia Pacific
  • Europe

Applications

  • Dairy Products
  • Industrial

Uses

  • Pressure Sensitive Labels

Appearance

  • White

Processing Method

  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Water-based Flexographic Printing
  • Middle Web Adhesive Lamination
  • UV Offset Lithography Printing
  • UV Flexographic Printing
  • UV Letterpress Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 22989in²/lb Internal Method
Unit Weight 18.8lb/ream Internal Method
Film Thickness 2.2mil Internal Method
Gloss 60Gloss Unit Internal Method
Light Transmission 15% Internal Method
Tensile Strength at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 11600psi Internal Method
TD 16000psi Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -3.0% Internal Method
TD -3.0% Internal Method
Elongation at Break
7.9 in/min pull rate, 4.9 in jaw separation
MD 110% Internal Method
TD 40% Internal Method
Elastic Modulus
MD 140000psi Internal Method
TD 261000psi Internal Method
Coefficient of Friction
Untreated Surface 0.60 Internal Method
Treatment
Print Surface 40dyne/cm Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • Treatment: Available treated outside

Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.

Revision date

  • March 12, 2021
