Bicor™ 85 LTSC

Product Description

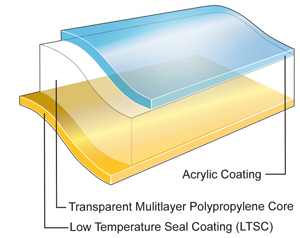

Bicor LTSC is a two-side coated OPP film, which is designed for use in high-speed or demanding horizontal, fin seal, packaging applications. The low-temperature seal coating (LTSC) delivers a low seal initiation temperature and wide operating range. LTSC\'s acrylic surface is excellent for surface printing and provides good aroma barrier.

Key Features

  • Wide sealing range with a low minim seal temperature (MST)
  • Excellent seal strength and hot tack
  • Robust performances on horizontal flowpack machines
  • Excellent humidity seal retention on LTSC side
  • Good flavour and aroma barrier
  • Outstanding optical properties
  • Ideal support for normal ink systems

General

Availability

  • Latin America
  • North America
  • South America

Features

  • Acrylic Coated
  • Flavor & Aroma Barrier
  • Humidity Resistant
  • Low Temperature Seal (LTS) Coated
  • Very Broad Seal Range

Applications

  • Biscuits/Cookie/Crackers
  • Confectionery, Gum
  • Confectionery, Sugar
  • Tobacco
  • Bakery
  • Confectionery, Chocolate
  • Frozen Food
  • Health and Beauty Care
  • Household and Detergents

Uses

  • HFFS Flexible Packaging

Appearance

  • Clear/Transparent

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 50.5m²/kg Internal Method
Unit Weight 19.9g/m² Internal Method
Film Thickness 22µ Internal Method
Gloss(45°)
Acrylic Surface 90 Internal Method
Haze 1.9% Internal Method
Tensile Strength at Break
510 mm/min pull rate, 50 mm jaw separation
MD 138Mpa Internal Method
TD 234Mpa Internal Method
Dimensional Stability 135°C / 275°F, 7 min
MD -4.5% Internal Method
TD -4.0% Internal Method
Crimp Seal Strength
LTS/LTS
127°C, 0.1 Mpa, 0.75 sec 490g/2.5 cm Internal Method
Crimp Seal MST (Minimum Seal Temperature)
LTS/LTS 71°C Internal Method
Coefficient of Friction
Acrylic/Acrylic 0.24 Internal Method
Water Vapor Transmission Rate
38°C, 90% RH 6.7g/m²/24 hr Internal Method

Legal Statement

Contact your Jindal Films Customer Service Representative for potential food contact application compliance (e.g. FDA, EU, HPFB). This product is not intended for use in medical applications and should not be used in any such applications.

Processing Statement

  • LTSC is designed for use in horizontal packaging applications, such as bakery. This is an excellent film for high-speed HFFS equipment.
  • LTSC provides a forgiving, wide operating range for applications where accurate heat control is a problem, or dwell times vary because of frequent machine speed changes.
  • LTSC is only suitable for fin seal applications. The acrylic and LTSC coatings are not compatible for heat sealing to each other.
  • Surface print and lamination characteristics are similar to other acrylic-coated films (AB, AB-X).
  • Acrylic coating and its properties can be affected by humidity and water condensation.Thorough testing is recommended when considering acrylic coated films in refrigerated or frozen applications.
  • To avoid blocking, ghosting, high residual solvents, or decreased sealability, converters should eliminate the use of slow solvents (cellosolve, glycol ethers, MIBK, butanol, etc) when printing on acrylic surfaces. The use of esters should be minimized.
  • The low temperature seal coated surface is not designed as the print surface. Consult ink supplier for recommendations, and conduct thorough testing prior to printing on this surface.



Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.
  2. Tested at 38°C (100°F)/100%RH, then calculated to 90%RH with .90 multiplier.

Revision date

  • October 10, 2013

Typical properties: these are not to be construed as specifications.
