Bicor™ HBS-2 - Oriented Polypropylene Film

PRODUCT DATA SHEET

Product Description

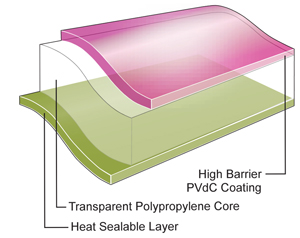

Bicor HBS-2 is a one-side sealable, one-side high barrier PVdC-coated OPP film designed for use as the inside sealant web in high-barrier laminations.

Key Features

  • Excellent moisture and oxygen barriers
  • Excellent flavor and aroma barrier
  • Excellent sealability, hot tack, and seal range
  • Lap sealable to a coex outer web


Properties & Typical Values

PropertiesUnit70 HBS-2Test Method
Yieldin²/lb39500ITM 01
Unit Weightlb/ream10.9ITM 01
Film Thicknessmil0.70ITM 02
Haze%1.8ITM 06
Tensile Strength at Break - MD|TD
20 in/min pull rate, 2.0 in jaw separation
psi16500|30000ITM 50
Dimensional Stability
135°C / 275°F, 7 min - MD|TD
%-4.5|-4.0ITM 37
Seal Strength (RDM) - 230°F, 20 psi, 0.75 secg/in430ITM26
Crimp Seal (MST)°F195
Water Vapor Transmission Rate - 100°F, 90% RHg/100 in²/24 hr0.16ITM 46
Oxygen Transmission Rate - 73°F, 0% RHcm³/100 in²/24 hr0.30ITM 42
Typical values should not be construed as finished product specifications (FPS).

Market Segments

  • Biscuits/Cookie/Crackers
  • Confectionery, Sugar
  • Bakery
  • Crisps and Snacks

Applications

  • HFFS Flexible Packaging
  • Pre-made Bags - Flexible Packaging
  • VFFS Flexible Packaging

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Inner Web Extrusion Lamination

Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: http://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

Storage

Footnotes

Revision date : October 10, 2013
