Bicor™ 100 LTSC

Oriented Polypropylene Film

Product Description

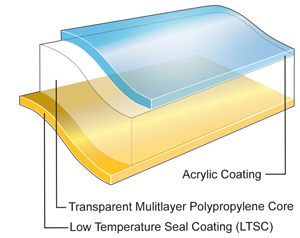

Bicor LTSC is a two-side coated OPP film, which is designed for use in high-speed or demanding horizontal, fin seal, packaging applications. The low-temperature seal coating (LTSC) delivers a low seal initiation temperature. LTSC provides a forgiving, wide operating range for applications where accurate heat control is a problem, or dwell times vary because of frequent machine speed changes. LTSC's acrylic surface is excellent for surface printing and provides good aroma barrier.

Key Features

  • Wide sealing range with a low minimum seal temperature (MST)
  • Excellent seal strength and hot-tack
  • Robust performance on horizontal flowpack machines
  • Excellent humidity seal retention on LTSC side
  • Good flavour and aroma barrier
  • Outstanding optical properties
  • Ideal support for normal ink systems

General

Availability

  • Latin America
  • North America
  • South America

Features

  • Acrylic Coated
  • Flavor & Aroma Barrier
  • In Lamination Lap Sealable
  • Humidity Resistant
  • Low Temperature Seal (LTS) Coated
  • Very Broad Seal Range

Applications

  • Biscuits/Cookie/Crackers
  • Confectionery, Gum
  • Confectionery, Sugar
  • Tobacco
  • Bakery
  • Confectionery, Chocolate
  • Frozen Food
  • Health and Beauty Care
  • Household and Detergents

Uses

  • HFFS Flexible Packaging

Appearance

  • Clear/Transparent

Processing Method

  • Inner Web Adhesive Lamination
  • Solvent Flexographic Printing
  • Solvent Rotogravure Printing
  • Surface Print Unsupported
  • Water-based Flexographic Printing


Properties

PropertyTypical ValueUnitTest Based On
Yield 44.2m²/kg Internal Method
Unit Weight 22.9g/m² Internal Method
Film Thickness 25µm Internal Method
Haze 2.1% Internal Method
Gloss (45°)
Acrylic Surface 90 Internal Method
Tensile Strength at Break
510 mm/min pull rate, 50 mm jaw separation
MD 138Mpa Internal Method
TD 207Mpa Internal Method
Dimensional Stability
135°C / 275°F, 7 min
MD -4.5% Internal Method
TD -4.0% Internal Method
Crimp Seal Strength
LTS/LTS
127°C, 0.1 Mpa, 0.75 sec 520g/2.5 cm Internal Method
Crimp Seal (MST)
LTS/LTS 71°C Internal Method
Coefficient of Friction 0.23 Internal Method
Water Vapor Transmission Rate
38°C, 90% RH 5.7g/m²/24 hr Internal Method



Food Contact

Any further regulatory information on this product (i.e. Food Contact application, Presence/absence of substances, Reach, …) are accessible on the below link: https://www.jindalfilms.com/login-register-docmg/

Legal Statement

This product is not intended for or supported for use in pharmaceutical or medical applications requiring compliance with EU or US Pharmacopeia.

Processing Statement

  • LTSC is only suitable for fin seal applications. The acrylic and LTSC coatings are not compatible for heat sealing to each other.
  • Surface print and lamination characteristics are similar to other acrylic-coated films (AB, AB-X).
  • Acrylic coating and its properties can be affected by humidity and water condensation.Thorough testing is recommended when considering acrylic-coated films in refrigerated or frozen applications.
  • To avoid blocking, ghosting, high residual solvents, or decreased sealability, converters should eliminate the use of slow solvents (cellosolve, glycol ethers, MIBK, butanol, etc) when printing on acrylic surfaces. The use of esters should be minimized.
  • The low temperature seal coated surface is not designed as the print surface. Consult ink supplier for recommendations, and conduct thorough testing prior to printing on this surface.



Footnotes

  1. Product may not be available in one or more countries in the identfied Availability regions. Please contact your Sales Representative for complete country availability.
  2. Dimensional stability is reported for uncoated base film.
  3. Tested at 38°C (100°F)/100%RH, then calculated to 90%RH with .90 multiplier.

Revision date

  • October 08, 2013
